Single components CD-6 changer for BMW 5 Series E34 525tds (1996)

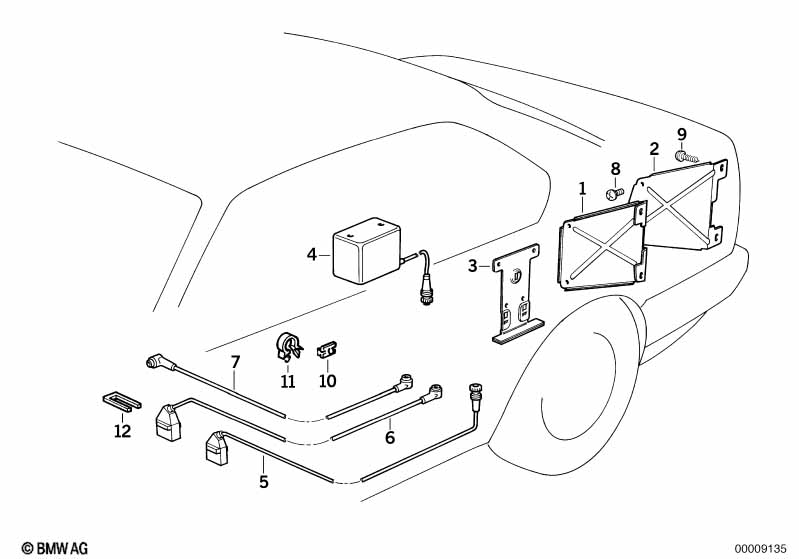

This Single components CD-6 changer technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer front | 1 | 65128355804 | $7.20 | Shop at ECS Tuning | |||||
| 02 | Bracket CD-changer rear | 1 | 65128355805 | $9.39 | Shop at ECS Tuning | |||||
| 03 | Bracket CD-changer | 1 | 65128355806 | $7.36 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 04 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128355803 | $505.55 | ENDED | Shop at ECS Tuning | |||
| 04 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128359507 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 05 | Connection cable CD-changer | 4200MM | 1 | 65128355810 | $72.22 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 06 | Connection cable CD-changer | 4450MM | 1 | 65128355807 | ENDED | Shop at ECS Tuning | ||||
| 07 | Connection cable CD-changer | 670MM | 1 | 65128355809 | $65.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister head screw | M4X8 | 8 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X13 | 4 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 12 | Clip f plug terminal | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
