Supplementary parts 2.componente for BMW 7 Series E32 740i (1994)

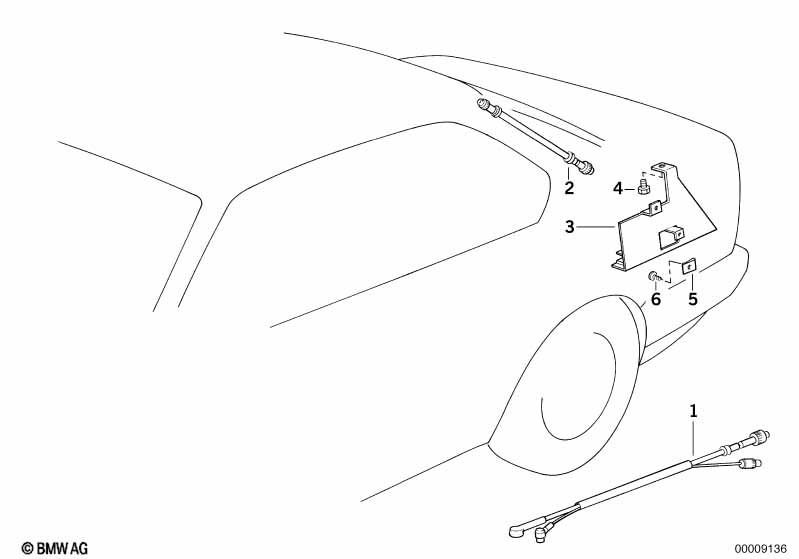

This Supplementary parts 2.componente technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection cable | PROF./PROF.RDS | 1 | 01/1992 | 65128350411 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna cable | 1900MM | 1 | 01/1992 | 65248356273 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket receiving part | 1 | 01/1992 | 65128356087 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X10 | 1 | 01/1992 | 07119913218 | $0.12 | Shop at ECS Tuning | |||
| 05 | Plug-in nut | M5 | 2 | 01/1992 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
| 06 | Fillister head self-tapping screw | ST4,8X13 | 2 | 01/1992 | 07119907786 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740i Supplementary parts 2.componente?
- This technical diagram illustrates the Supplementary parts 2.componente within the Audio, Navigation, Electronic Systems group for the 7 Series E32 740i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Connection cable (Part #65128350411).
- Which models use the hardware listed in this Supplementary parts 2.componente?
- The hardware and components featured in the Supplementary parts 2.componente are specific to the 7 Series E32 740i produced during 1994. These technical specifications ensure that parts like the Connection cable (65128350411) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Supplementary parts 2.componente assembly?
- Each item in the Supplementary parts 2.componente corresponds to the numbered list below the illustration. For the 7 Series E32 740i, you can identify the Connection cable by locating its position on the schematic, which then links to the official BMW part number 65128350411 for the Audio, Navigation, Electronic Systems section.
