Single parts f antenna-diversity for BMW 3 Series E36 325tds (1998)

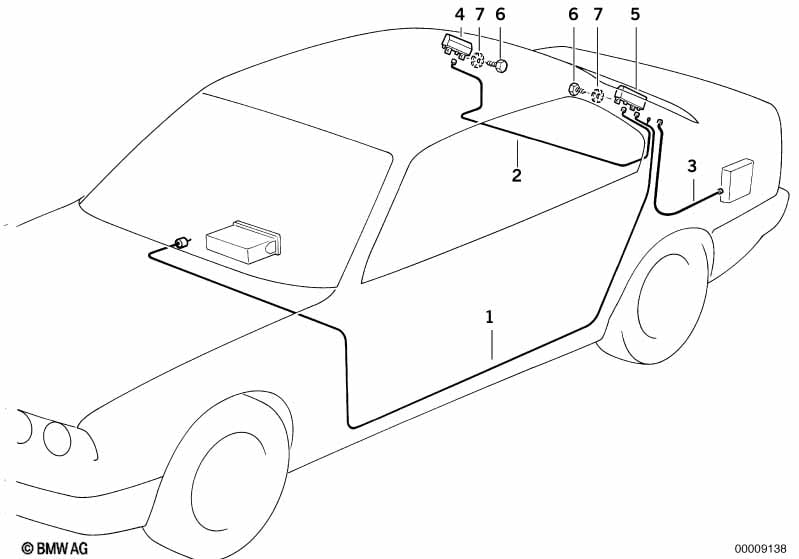

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna cable | 4030MM | 1 | 65258375177 | $96.45 | Shop at ECS Tuning | ||||
| 02 | Antenna cable | 2110MM | 1 | 65258375176 | $20.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 03 | Antenna cable | 1600MM | 1 | 65258375178 | $94.15 | ENDED | Shop at ECS Tuning | |||
| 04 | Amplifier/trap circuit | 1 | 65258375174 | $89.47 | Shop at ECS Tuning | |||||
| 05 | Amplifier | 1 | 65258375175 | $237.28 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex head screw | L=15 MM | 4 | 65221370813 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Tooth washer | A6,4 | 4 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Single parts f antenna-diversity?
- This technical diagram illustrates the Single parts f antenna-diversity within the Audio, Navigation, Electronic Systems group for the 3 Series E36 325tds produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Antenna cable (Part #65258375177).
- Which models use the hardware listed in this Single parts f antenna-diversity?
- The hardware and components featured in the Single parts f antenna-diversity are specific to the 3 Series E36 325tds produced during 1998. These technical specifications ensure that parts like the Antenna cable (65258375177) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f antenna-diversity assembly?
- Each item in the Single parts f antenna-diversity corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Antenna cable by locating its position on the schematic, which then links to the official BMW part number 65258375177 for the Audio, Navigation, Electronic Systems section.
