Single components f short rod antenna for BMW 3 Series E36 325i (1995)

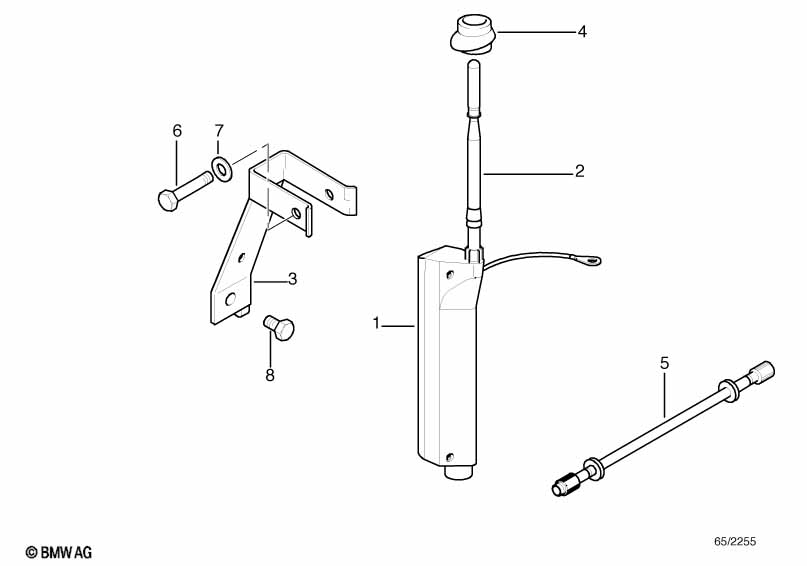

This Single components f short rod antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna base f short rod antenna | 1 | 65218375159 | $105.50 | Shop at ECS Tuning | |||||
| 02 | Antenna rod f short rod antenna | 1 | 65218375160 | $35.42 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket f short rod antenna | 1 | 65218375113 | $6.07 | ENDED | Shop at ECS Tuning | ||||
| 04 | Grommet f short rod antenna | 1 | 65218375151 | $1.78 | Shop at ECS Tuning | |||||
| 05 | Antenna cable | 5470MM | 1 | 65218375157 | $27.43 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 05 | Antenna cable | 3080MM | 1 | 65248375161 | $19.47 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M4X35 | 1 | 07119912076 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X10 | 1 | 07119904442 | $0.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
