Single components CD-6 changer for BMW 3 Series E36 320i (1995)

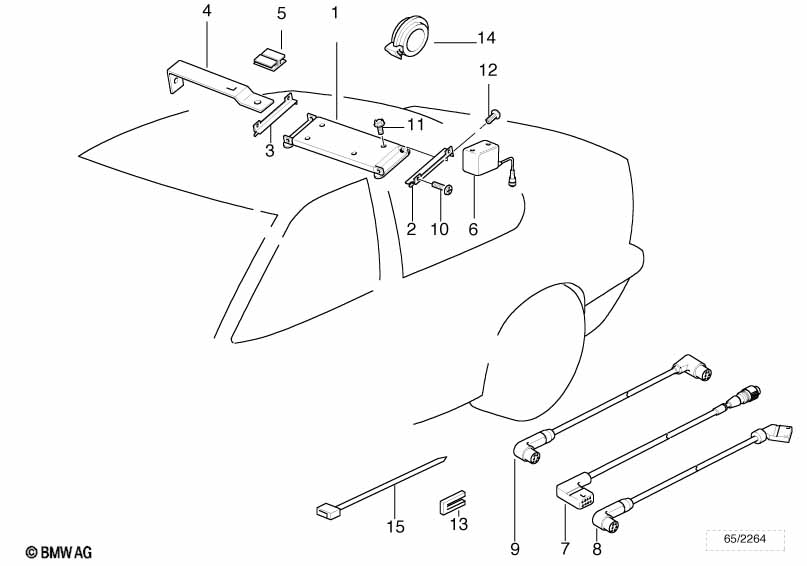

This Single components CD-6 changer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer | 1 | 65128361146 | $9.53 | Shop at ECS Tuning | |||||
| 02 | Bracket CD-changer left | 1 | 65128361329 | $3.29 | Shop at ECS Tuning | |||||
| 03 | Bracket CD-changer right | 1 | 65128361330 | $3.29 | Shop at ECS Tuning | |||||
| 04 | Plug connection bracket f wiring set | 1 | 65128361159 | $4.90 | Shop at ECS Tuning | |||||
| 05 | Bracket, plug connection white | 1 | 61131378997 | $0.87 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 06 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128355803 | $505.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128359507 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 07 | Connection cable CD-changer | 5290MM | 1 | 65128361089 | $86.62 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 08 | Connection cable CD-changer | 5130MM | 1 | 65128361090 | $107.42 | ENDED | Shop at ECS Tuning | |||
| 09 | Connection cable CD-changer | 2320MM | 1 | 65128361091 | $76.17 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister head screw | M4X8 | 8 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X12 | 4 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | M5X8-Z3 | 2 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Clip f plug terminal | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
| 14 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 15 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
