Single components CD-6 changer for BMW 3 Series E36 318i (1998)

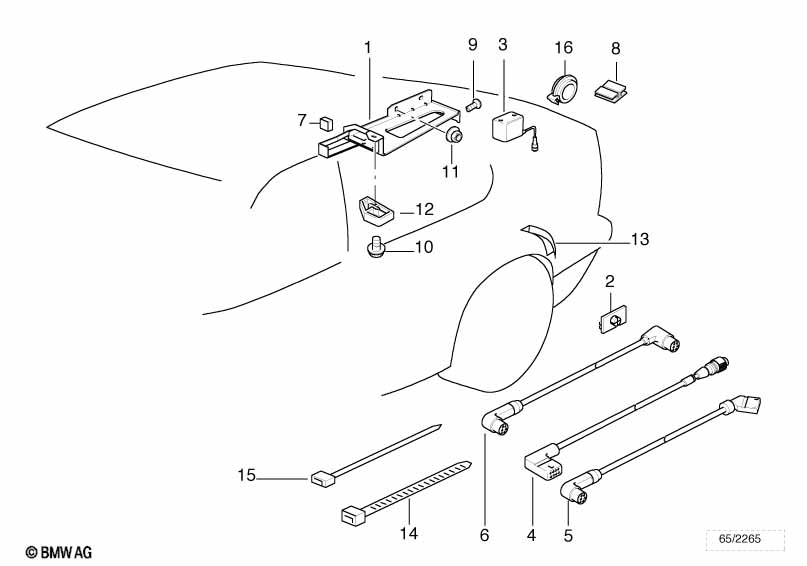

This Single components CD-6 changer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer | 1 | 65128360601 | $21.15 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Bracket CD-changer | 1 | 65128369727 | $4.06 | +core | Shop at ECS Tuning | ||||
| 02 | Bracket, plug connection white | 1 | 61131378997 | $0.87 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 03 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128355803 | $505.55 | ENDED | Shop at ECS Tuning | |||
| 03 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128359507 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 04 | Connection cable CD-changer | 6580MM | 1 | 65128360966 | $100.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 05 | Connection cable CD-changer | 6580MM | 1 | 65128360967 | $133.92 | ENDED | Shop at ECS Tuning | |||
| 06 | Connection cable CD-changer | 5680MM | 1 | 65128360968 | $181.91 | ENDED | Shop at ECS Tuning | |||
| 07 | Absorbing piece | 1 | 51488133384 | $0.89 | Shop at ECS Tuning | |||||
| 08 | Clip f plug terminal | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M4X8 | 6 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X12 | 1 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 | 2 | 06/2006 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 11 | Locknut | M6 ZNT | 2 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Spacer | 1 | 65128360602 | $1.06 | +core | Shop at ECS Tuning | ||||
| 13 | Running meter, edge protection | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 14 | Cable tie | 2 | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 15 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 16 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
