Single components hifi system for BMW 3 Series E36 318ti (1999)

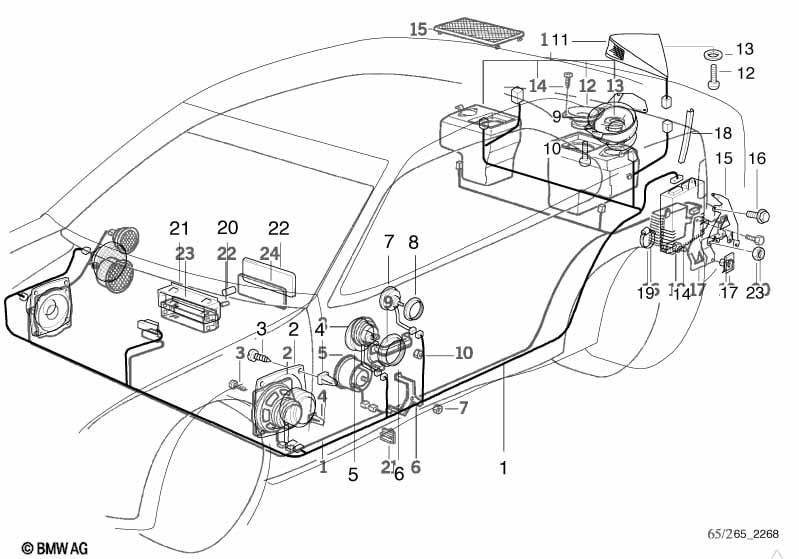

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness HiFi | 1 | 61128364041 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X16-Z1 | 8 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,8X16 | 8 | 07119906876 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | MID-range loudspeaker | SCHWARZ | 2 | 65138361485 | $63.92 | Shop at ECS Tuning | ||||
| 05 | MID-range loudspeaker | SANDGRAU | 2 | 65138361486 | $63.92 | +core | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 05 | Chrome MID-range loudspeaker | SCHWARZ | 2 | 65132268908 | $79.17 | Shop at ECS Tuning | ||||
| 05 | Chrome MID-range loudspeaker | SANDGRAU | 2 | 65132492562 | $72.82 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Loudspeaker threaded ring | 2 | 65138360690 | $1.77 | Shop at ECS Tuning | |||||
| 07 | Tweeter | SCHWARZ | 2 | 65138361490 | $51.27 | Shop at ECS Tuning | ||||
| 07 | Tweeter | SANDGRAU | 2 | 65138361503 | $51.27 | Shop at ECS Tuning | ||||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 07 | Chrome Tweeter | SCHWARZ | 2 | 65132268905 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Chrome Tweeter | SANDGRAU | 2 | 65132492560 | $65.84 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Tweeter threaded ring | 2 | 65138360689 | $6.18 | Shop at ECS Tuning | |||||
| 09 | Rear left loudspeaker | HIFI-SYSTEM | 1 | 65138360679 | $46.35 | Shop at ECS Tuning | ||||
| 09 | Rear right loudspeaker | HIFI-SYSTEM | 1 | 65138360680 | $46.35 | Shop at ECS Tuning | ||||
| 10 | Screw | 8 | 51251453383 | $0.58 | Shop at ECS Tuning | |||||
| 11 | Rear left loudspeaker tweeter | SCHWARZ | 1 | 65138361599 | $46.35 | ENDED | Shop at ECS Tuning | |||
| 11 | Rear right loudspeaker tweeter | SCHWARZ | 1 | 65138361600 | $46.35 | Shop at ECS Tuning | ||||
| 11 | Rear left loudspeaker tweeter | SANDGRAU | 1 | 65138361601 | $46.35 | +core | Shop at ECS Tuning | |||
| 11 | Rear right loudspeaker tweeter | SANDGRAU | 1 | 65138361602 | $46.35 | +core | Shop at ECS Tuning | |||
| 12 | Screw | 4 | 51251453383 | $0.58 | Shop at ECS Tuning | |||||
| 13 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Anti-interfer.(telephone) hifi amplifier | 1 | 65128362120 | ENDED | Shop at ECS Tuning | |||||
| 15 | Holder Hifi system amplifier | 1 | 65128361491 | $7.65 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M6X12 | 6 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 17 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 18 | Running meter, edge protection | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 19 | Tubing support | D=18,4 | 1 | 61131368928 | $0.35 | Shop at ECS Tuning | ||||
| 20 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 21 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 22 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
| 23 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
