Single parts f antenna-diversity for BMW 7 Series E38 740iL (1996)

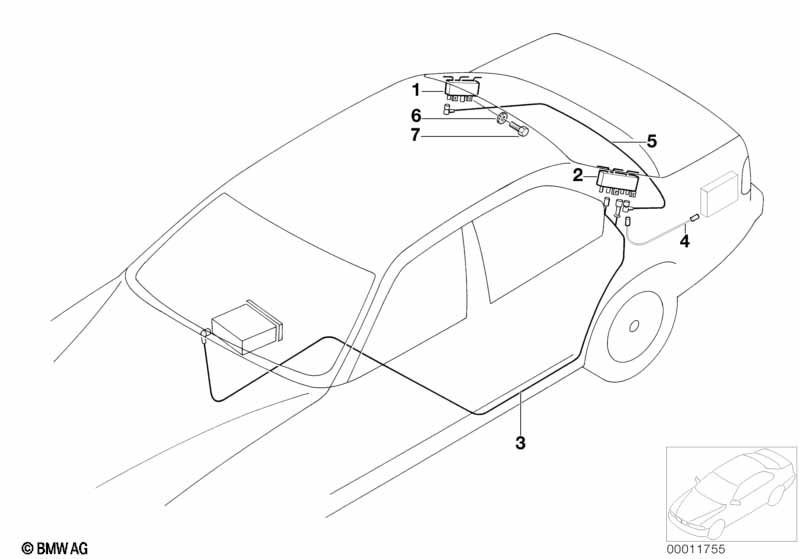

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier/trap circuit | 1 | 65248352499 | $89.47 | Shop at ECS Tuning | |||||
| For vehicles with Radio remote control |
=Yes |
|||||||||
| 01 | Amplifier/trap circuit | 433MHZ | 1 | 65258380685 | Shop at ECS Tuning | |||||
| 01 | Amplifier/trap circuit | 315MHZ | 1 | 65258380686 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with Radio remote control and Independent heating with telestart |
=Yes =Yes |
|||||||||
| 01 | Amplifier/trap circuit | 1 | 65258380687 | $197.28 | Shop at ECS Tuning | |||||
| 02 | Amplifier | 1 | 65258378090 | $197.28 | Shop at ECS Tuning | |||||
| 03 | Antenna cable | 4500MM | 1 | 65258360957 | $78.88 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 04 | Antenna cable | 1570MM | 1 | 65258352759 | $66.85 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Antenna cable | 2720MM | 1 | 65258352497 | $15.63 | ENDED | Shop at ECS Tuning | |||
| 06 | Tooth washer | A6,4 | 4 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | L=15 MM | 4 | 65221370813 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
