Single components CD-6 changer for BMW 7 Series E38 725tds (2000)

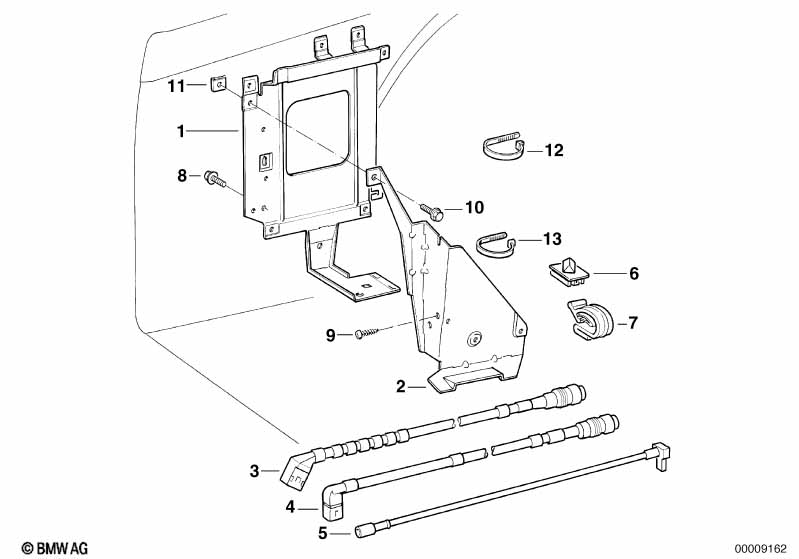

This Single components CD-6 changer technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base support system | 1 | 65128352488 | $27.06 | Shop at ECS Tuning | |||||
| 02 | Bracket CD-changer | 1 | 84438381529 | $26.61 | Shop at ECS Tuning | |||||
| 03 | Connection cable CD-changer | 4940MM | 1 | 09/1998 | 65128383855 | $62.65 | Shop at ECS Tuning | |||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 03 | Connection cable CD-changer | 830MM | 1 | 09/1998 | 65128383857 | $61.40 | Shop at ECS Tuning | |||
| For vehicles with Top-HiFi-System |
=Yes |
|||||||||
| 05 | Connection cable CD-changer | 650MM | 1 | 65128361177 | $24.08 | Shop at ECS Tuning | ||||
| 06 | Bracket, plug connection gray | 1 | 61138365536 | $0.93 | Shop at ECS Tuning | |||||
| 07 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M4X8 | 4 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X14 | X | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Body nut | M5 | X | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 12 | Cable tie | 1 | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 13 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
