Single parts f front door top-hifi syst. for BMW 7 Series E38 735i (2001)

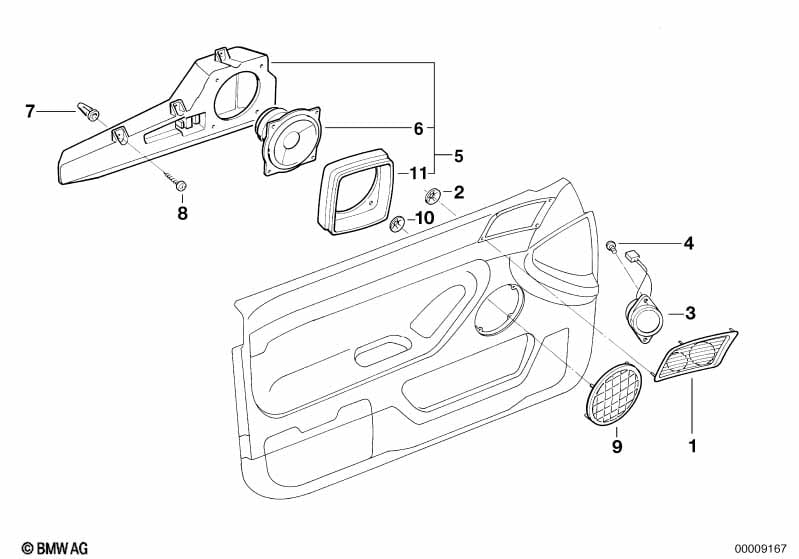

This Single parts f front door top-hifi syst. technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi System Professional DSP |
S677A=Yes |
||||||||
| 01 | Left top-hifi loudspeaker tweeter | SCHWARZ | 1 | 65138352703 | $64.43 | +core | Shop at ECS Tuning | |||
| 01 | Right top-hifi loudspeaker tweeter | SCHWARZ | 1 | 65138352704 | $64.43 | +core | Shop at ECS Tuning | |||
| 01 | Left top-hifi loudspeaker tweeter | MARINEBLAU | 1 | 65138352705 | $69.19 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Right top-hifi loudspeaker tweeter | MARINEBLAU | 1 | 65138352706 | $64.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Left top-hifi loudspeaker tweeter | DUNKELGRUEN | 1 | 65138352707 | $64.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Right top-hifi loudspeaker tweeter | DUNKELGRUEN | 1 | 65138352708 | $64.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Left top-hifi loudspeaker tweeter | DUNKELBEIGE | 1 | 65138375013 | $64.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Right top-hifi loudspeaker tweeter | DUNKELBEIGE | 1 | 65138375014 | $64.43 | +core | Shop at ECS Tuning | |||
| 02 | Spring nut | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Front door tophifi MID-range loudspeaker | 2 | 65138352444 | $121.45 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | 4 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Left front door loudspeaker box | TOP-HIFI-SYSTEM | 1 | 65138371237 | $126.38 | Shop at ECS Tuning | ||||
| 05 | Right front door loudspeaker box | TOP-HIFI-SYSTEM | 1 | 65138371238 | $126.38 | Shop at ECS Tuning | ||||
| 06 | Loudspeaker | TOP-HIFI-SYSTEM | 2 | 65138352689 | $51.27 | +core | Shop at ECS Tuning | |||
| 07 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | SCHWARZ | 2 | 51418178241 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | PEARLBEIGE | 2 | 51418246255 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | DUNKELGRUEN | 2 | 51418179000 | $14.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | LAVENDELGRAU | 2 | 51418190826 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | PASTELLGRUEN | 2 | 51418190827 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 09 | Cover Loudspeaker | SCHWARZ | 2 | 51418216716 | $26.75 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | GRAU | 2 | 51418216717 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | MARINEBLAU | 2 | 51418216718 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | SANDBEIGE | 2 | 51418216719 | $13.38 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | LAVENDELGRAU | 2 | 51418216720 | $14.17 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | DUNKELGRUEN | 2 | 51418216721 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | PASTELLGRUEN | 2 | 51418216722 | $14.17 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | PEARLBEIGE | 2 | 09/1998 | 51418247497 | $21.98 | ENDED | Shop at ECS Tuning | ||
| 10 | Spring nut | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Sound insulation ring for loudspeaker | 2 | 65138369083 | $9.28 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
