Singl.parts subwooferbox top-hifi system for BMW 7 Series E38 740i (1998)

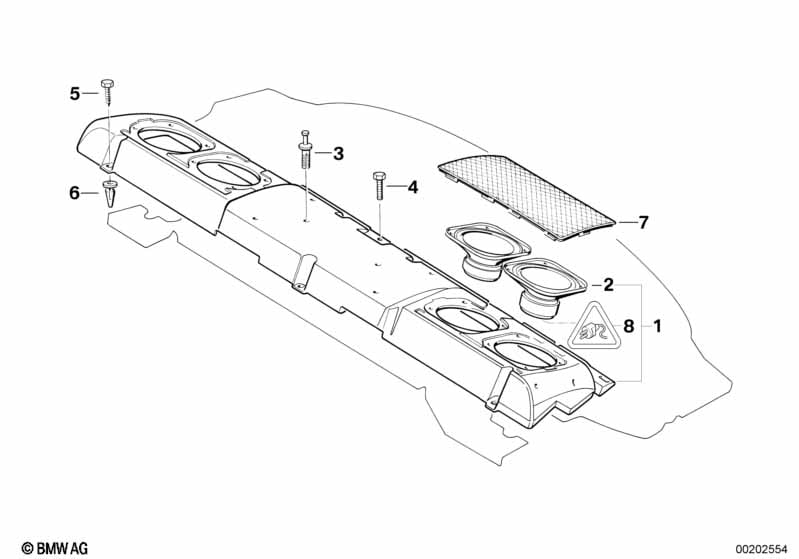

This Singl.parts subwooferbox top-hifi system technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi System Professional DSP |
S677A=Yes |
||||||||
| 01 | Subwooferbox top-hifi system | 1 | 65138372077 | $982.90 | +core | Shop at ECS Tuning | ||||
| 02 | Subwoofer top-hifi system | 4 | 65138352453 | $98.12 | +core | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | 1 | 51111964186 | $0.37 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | 3 | 72118191870 | $0.92 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X22-C-Z2 | 2 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Subwoofer covering | GRAU | 2 | 51438174160 | $28.10 | Shop at ECS Tuning | ||||
| 07 | Subwoofer covering | ANTHRAZIT | 2 | 51438174161 | $28.10 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Subwoofer covering | MARINEBLAU | 2 | 51438174162 | $28.10 | ENDED | Shop at ECS Tuning | |||
| 07 | Subwoofer covering | SANDBEIGE | 2 | 51468174163 | $28.10 | Shop at ECS Tuning | ||||
| 07 | Subwoofer covering | LAVENDELGRAU | 2 | 51468174164 | $26.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Subwoofer covering | DUNKELGRUEN | 2 | 51468174165 | $26.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Subwoofer covering | PASTELLGRUEN | 2 | 51468174166 | $26.23 | ENDED | Shop at ECS Tuning | |||
| 08 | Pin terminal | 8 POL. WASSERBL | 1 | 61138352323 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 | 0,5-1,0MM² | 8 | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
