Hifi/top-hifi system control/amplifier for BMW 7 Series E38 728i (1998)

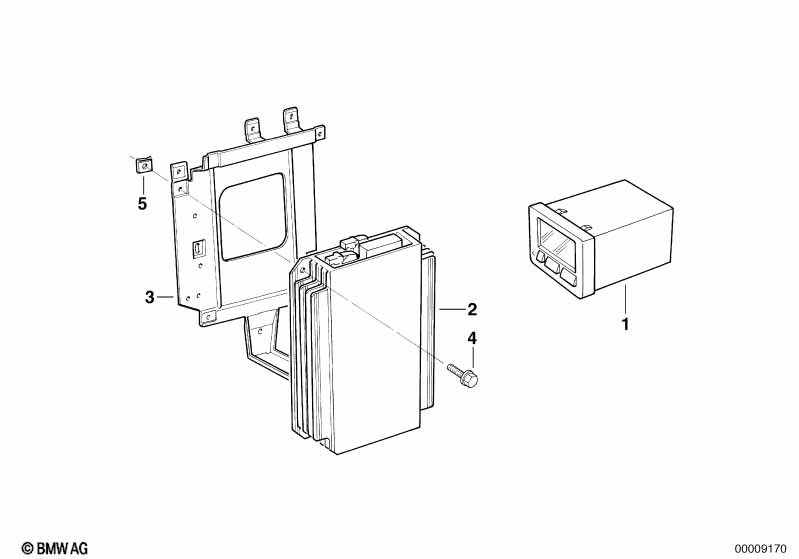

This Hifi/top-hifi system control/amplifier technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi speaker system or HiFi System Professional DSP |
S676A=Yes S677A=Yes |
||||||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Control device Hifi DSP | 1 | 65128375692 | $442.30 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 02 | Amplifier Hifi | 1 | 65128361785 | $447.48 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 02 | Amplifier Hifi DSP uncoded | 1 | 65126940977 | $1319.06 | Shop at ECS Tuning | |||||
| 03 | Base support system | 1 | 65128352488 | $27.06 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M5X14 | X | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | X | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
