Singl.parts f rear window teleph.antenna for BMW 3 Series E36 325i (1995)

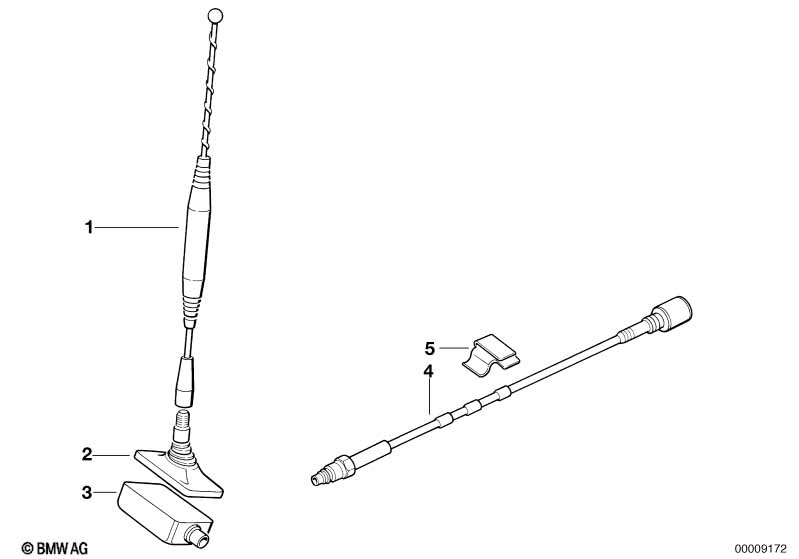

This Singl.parts f rear window teleph.antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna radiator | D-NETZ 268MM | 1 | 01/1997 | 84509119059 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Rear window telephone antenna base | D-NETZ | 1 | 01/1997 | 84508375135 | $14.58 | Shop at ECS Tuning | |||
| 03 | Connecting box | D-NETZ | 1 | 01/1997 | 84508375136 | $27.34 | +core | Shop at ECS Tuning | ||
| 04 | Antenna cable | D-NETZ 2500MM | 1 | 01/1997 | 84548368629 | ENDED | Shop at ECS Tuning | |||
| 05 | Antenna cable clip | 3 | 84548369486 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
