Single components stereo system for BMW 3 Series E36 325tds (1994)

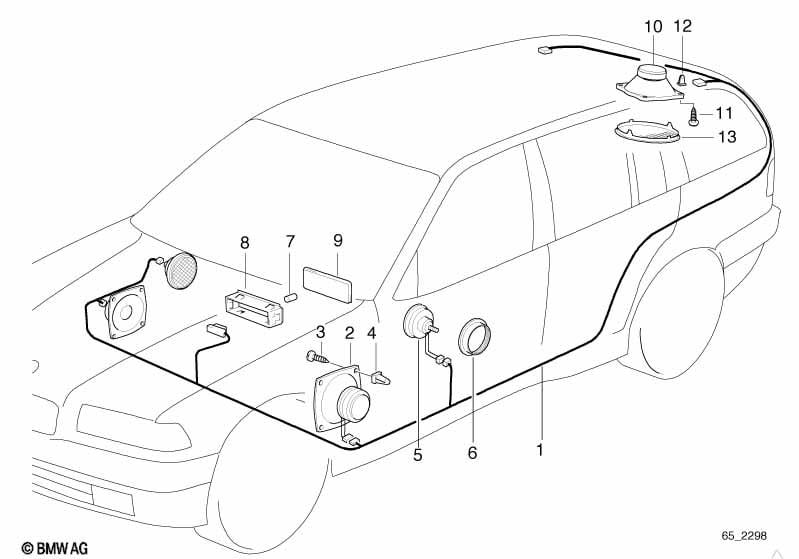

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness Stereo | 1 | 09/1996 | 61128364043 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | 4 OHM 18/25WATT | 2 | 65138369951 | $31.27 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X13-Z1 | 8 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Tweeter | SCHWARZ | 2 | 65138362940 | $45.28 | Shop at ECS Tuning | ||||
| 05 | Tweeter | SANDGRAU | 2 | 65138362944 | $45.28 | ENDED | Shop at ECS Tuning | |||
| 05 | Tweeter | GRAU | 2 | 65138362946 | $45.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 05 | Chrome Tweeter | SCHWARZ | 2 | 65132268911 | $65.29 | Shop at ECS Tuning | ||||
| 05 | Chrome Tweeter | BEIGE | 2 | 65132268912 | $63.92 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Chrome Tweeter | GRAU | 2 | 65132268913 | $65.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Chrome Tweeter | SANDGRAU | 2 | 65132492568 | $47.15 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Loudspeaker threaded ring | 2 | 65138360690 | $1.77 | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 08 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 09 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
| 10 | Loudspeaker | 4OHM 25/40W | 2 | 65138353258 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Cover Loudspeaker | SCHWARZ | 2 | 51442267171 | $20.63 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover Loudspeaker | GRAU | 2 | 51448192993 | Shop at ECS Tuning | |||||
| 13 | Cover Loudspeaker | BEIGE | 2 | 51478192994 | ENDED | Shop at ECS Tuning | ||||
