Single components hifi system for BMW 3 Series E36 325tds (1999)

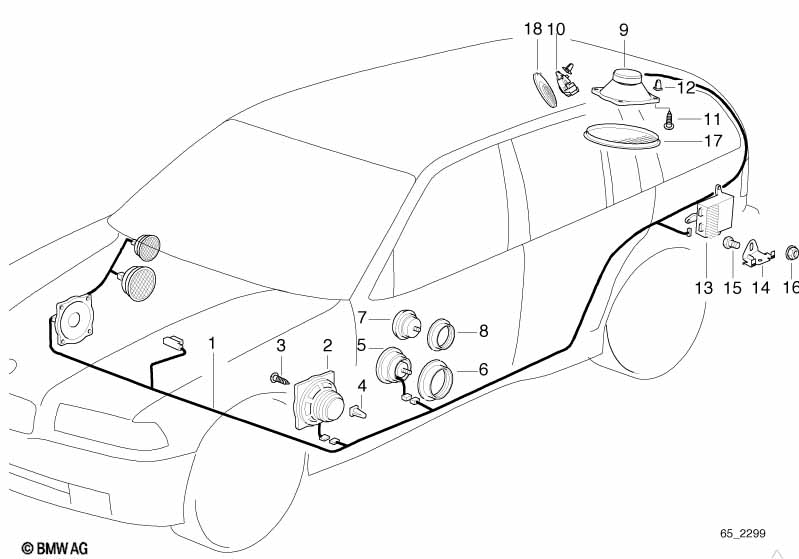

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness HiFi | 1 | 09/1996 | 61128373096 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Antenna-Diversity |
=Yes |
|||||||||
| 01 | Audio wiring harness HiFi | 1 | 09/1996 | 61128373097 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X16-Z1 | 8 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,8X16 | 8 | 07119906876 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | MID-range loudspeaker | SCHWARZ | 2 | 65138361485 | $63.92 | Shop at ECS Tuning | ||||
| 05 | MID-range loudspeaker | SANDGRAU | 2 | 65138361486 | $63.92 | +core | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 05 | Chrome MID-range loudspeaker | SCHWARZ | 2 | 65132268908 | $79.17 | Shop at ECS Tuning | ||||
| 05 | Chrome MID-range loudspeaker | BEIGE | 2 | 65132268909 | $79.17 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Chrome MID-range loudspeaker | GRAU | 2 | 65132268910 | $79.17 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Chrome MID-range loudspeaker | SANDGRAU | 2 | 65132492562 | $72.82 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Loudspeaker threaded ring | 2 | 65138360690 | $1.77 | Shop at ECS Tuning | |||||
| 07 | Tweeter | SANDGRAU | 2 | 65138361488 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Tweeter | BEIGE | 2 | 65138362951 | $51.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Tweeter | GRAU | 2 | 65138362952 | $51.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Top-hifi loudspeaker tweeter | SCHWARZ | 2 | 65138366461 | $110.95 | Shop at ECS Tuning | ||||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 07 | Chrome Tweeter | SCHWARZ | 2 | 65132268905 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Chrome Tweeter | BEIGE | 2 | 65132268906 | $71.78 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Chrome Tweeter | GRAU | 2 | 65132268907 | $71.78 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Chrome Tweeter | SANDGRAU | 2 | 65132492560 | $65.84 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Tweeter threaded ring | 2 | 65138360689 | $6.18 | Shop at ECS Tuning | |||||
| 09 | Loudspeaker | 4OHM 25/40W | 2 | 65138353258 | Shop at ECS Tuning | |||||
| 10 | Tweeter | 2 | 65128361462 | $45.28 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,8X16 | X | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Anti-interfer.(telephone) hifi amplifier | 1 | 65128361784 | ENDED | Shop at ECS Tuning | |||||
| 14 | Holder Hifi system amplifier | 1 | 65128361350 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Cover Loudspeaker | SCHWARZ | 2 | 51442267171 | $20.63 | ENDED | Shop at ECS Tuning | |||
| 17 | Cover Loudspeaker | GRAU | 2 | 51448192993 | Shop at ECS Tuning | |||||
| 17 | Cover Loudspeaker | BEIGE | 2 | 51478192994 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cover Loudspeaker | HELLGRAU | 2 | 51448362121 | Shop at ECS Tuning | |||||
| 18 | Cover Loudspeaker | HELBEIGE | 2 | 51448362122 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cover Loudspeaker | SCHWARZ | 2 | 65112267160 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
