Single parts f side panel teleph.antenna for BMW 5 Series E34 525tds (1996)

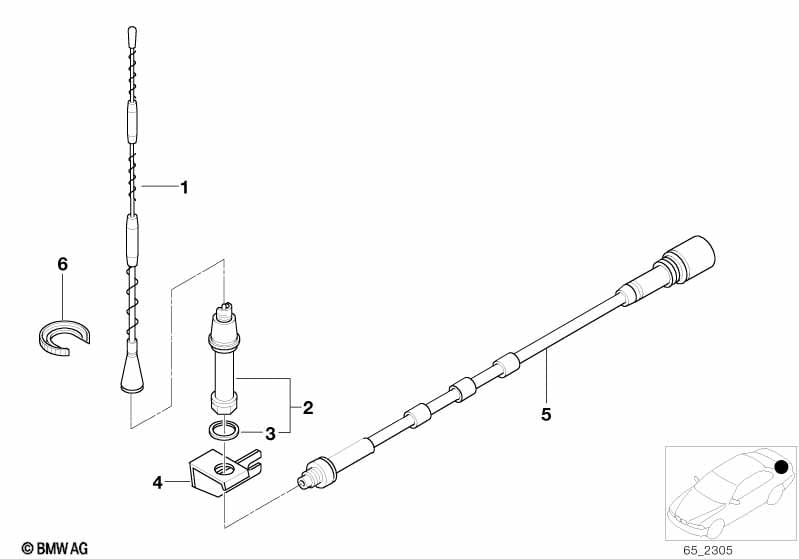

This Single parts f side panel teleph.antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna radiator | D-NETZ 837MM | 1 | 84518360970 | $145.63 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Antenna base | D-NETZ | 1 | 84518361244 | $80.07 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Gasket ring | 1 | 84518361246 | $3.91 | Shop at ECS Tuning | |||||
| 05 | Antenna cable | D-NETZ 775MM | 1 | 65618359286 | $27.06 | ENDED | Shop at ECS Tuning | |||
| 06 | Antenna key | 1 | 84549404727 | $1.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Single parts f side panel teleph.antenna?
- This technical diagram illustrates the Single parts f side panel teleph.antenna within the Audio, Navigation, Electronic Systems group for the 5 Series E34 525tds produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Antenna radiator (Part #84518360970).
- Which models use the hardware listed in this Single parts f side panel teleph.antenna?
- The hardware and components featured in the Single parts f side panel teleph.antenna are specific to the 5 Series E34 525tds produced during 1996. These technical specifications ensure that parts like the Antenna radiator (84518360970) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f side panel teleph.antenna assembly?
- Each item in the Single parts f side panel teleph.antenna corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Antenna radiator by locating its position on the schematic, which then links to the official BMW part number 84518360970 for the Audio, Navigation, Electronic Systems section.
