Single parts f antenna-diversity for BMW 5 Series E39 525i (2003)

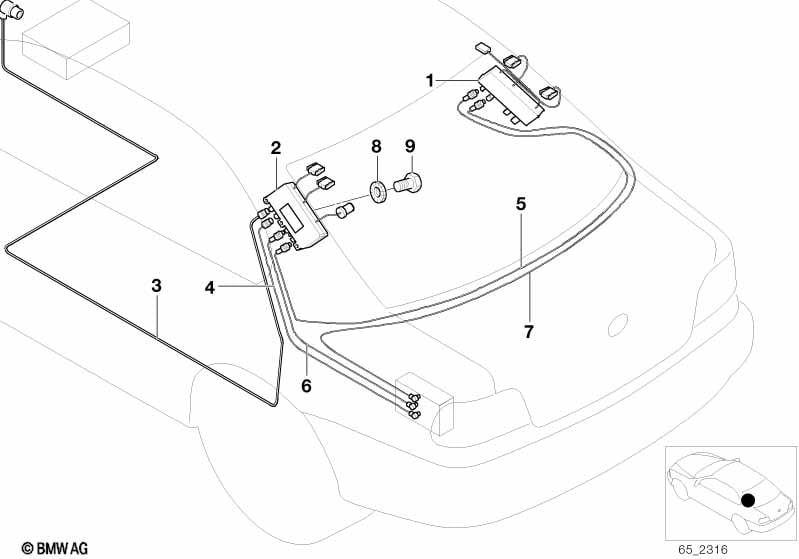

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier/trap circuit | 1 | 65248352499 | $89.47 | Shop at ECS Tuning | |||||
| For vehicles with Radio remote control |
=Yes |
|||||||||
| 01 | Amplifier/trap circuit | 433MHZ | 1 | 65258380685 | Shop at ECS Tuning | |||||
| 01 | Amplifier/trap circuit | 315MHZ | 1 | 65258380686 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with Radio remote control and Independent heating with telestart |
=Yes =Yes |
|||||||||
| 01 | Amplifier/trap circuit | 868MHZ | 1 | 09/2002 | 65206922876 | $197.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Amplifier | 1 | 09/2000 | 65256906082 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 02 | Amplifier | 1 | 09/2001 | 65256906082 | $197.28 | Shop at ECS Tuning | ||||
| 03 | Antenna cable | 3850MM | 1 | 65248361018 | $27.38 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 04 | Antenna cable | 1700MM | 1 | 65248361023 | $23.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Antenna cable Diversity | 1740MM | 1 | 65258361024 | $37.05 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and On-board monitor |
L807A=Yes =Yes |
|||||||||
| 04 | Antenna cable | 1830MM | 1 | 61128372439 | ENDED | Shop at ECS Tuning | ||||
| 04 | Antenna cable Diversity | 1860MM | 1 | 61128372440 | $35.83 | ENDED | Shop at ECS Tuning | |||
| 05 | Antenna cable | 2570MM | 1 | 65248369504 | $19.10 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 06 | Left antenna cable | 1020MM | 1 | 65248369471 | $60.72 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and On-board monitor |
L807A=Yes =Yes |
|||||||||
| 06 | Left antenna cable | 2290MM | 1 | 61128372441 | ENDED | Shop at ECS Tuning | ||||
| 07 | antenna cable for independent heater | 470MM | 1 | 09/2002 | 61106925024 | $70.20 | ENDED | Shop at ECS Tuning | ||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 07 | Right antenna cable | 2520MM | 1 | 65248369470 | $60.72 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and On-board monitor |
L807A=Yes =Yes |
|||||||||
| 07 | Right antenna cable | 4070MM | 1 | 61128372442 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tooth washer | A6,4 | 3 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M5X15 | 3 | 84318361762 | $0.27 | Shop at ECS Tuning | ||||
