On board monitor radio for BMW 7 Series E38 730i (1996)

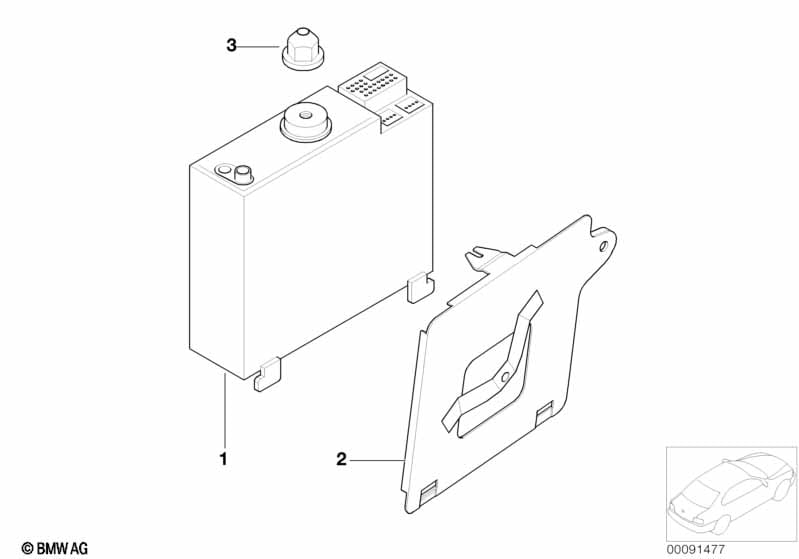

This On board monitor radio technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY WITH Operating instructions Refer to Publication Index List in the EPC |
|||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Exch. radio BMW Business | 1 | 03/1998 | 65128379532 | Shop at ECS Tuning | |||||
| 01 | Exch. radio BMW Business | 1 | 01/1999 | 65128382366 | Shop at ECS Tuning | |||||
| 01 | Radio BMW Business | 1 | 65128385446 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=Yes |
|||||||||
| 01 | Conversion kit for BMW Business radio | TMC INCL. CD-CH | 1 | 65129185186 | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=No |
|||||||||
| 01 | Conversion kit for BMW Business radio | TMC | 1 | 65129185187 | Shop at ECS Tuning | |||||
| For vehicles with Radio control Oceania |
S825A=Yes |
|||||||||
| 01 | Radio BMW Business | 1 | 65128382368 | Shop at ECS Tuning | ||||||
| 02 | Bracket f on bord monitor radio | 1 | 65128375189 | $18.97 | Shop at ECS Tuning | |||||
| 03 | Cap nut | M5 | 1 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
