Single parts f front door stereo system for BMW 5 Series E39 528i (1999)

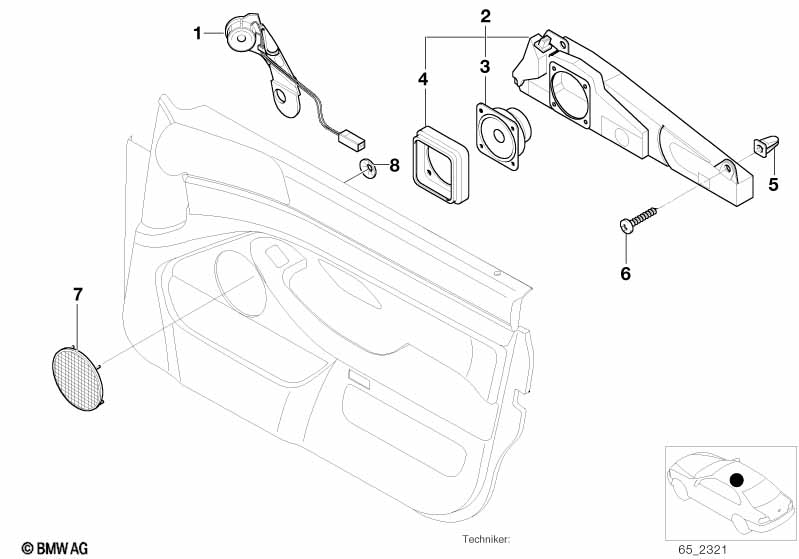

This Single parts f front door stereo system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left stereo loudspeaker tweeter | 1 | 65138362527 | $44.58 | Shop at ECS Tuning | |||||
| 01 | Right stereo loudspeaker tweeter | 1 | 65138362528 | $44.58 | Shop at ECS Tuning | |||||
| 02 | Left front door loudspeaker box | STEREO SYSTEM | 1 | 65138360775 | $96.53 | Shop at ECS Tuning | ||||
| 02 | Right front door loudspeaker box | STEREO SYSTEM | 1 | 65138360776 | $96.53 | Shop at ECS Tuning | ||||
| For vehicles with Car telephone |
=Yes |
|||||||||
| 02 | Left front door loudspeaker box | STEREO / HIFI | 1 | 09/2000 | 65138362539 | $121.45 | Shop at ECS Tuning | |||
| 02 | Right front door loudspeaker box | STEREO / HIFI | 1 | 09/2000 | 65138362540 | $121.45 | ENDED | Shop at ECS Tuning | ||
| 03 | Loudspeaker | 2 | 65138369265 | $46.88 | Shop at ECS Tuning | |||||
| For vehicles with Car telephone |
=Yes |
|||||||||
| 03 | Loudspeaker | STEREO / HIFI | 2 | 09/2000 | 65138352688 | $51.27 | Shop at ECS Tuning | |||
| 04 | Sound insulation ring for loudspeaker | 2 | 65138369578 | $9.57 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | ST 4.8 WEISS | 6 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X16 | 6 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Cover Loudspeaker | SCHWARZ | 2 | 51418178241 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover Loudspeaker | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Cover Loudspeaker | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Cover Loudspeaker | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 08 | Spring nut | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
