Single parts f front door hifi system for BMW 5 Series E39 525i (2003)

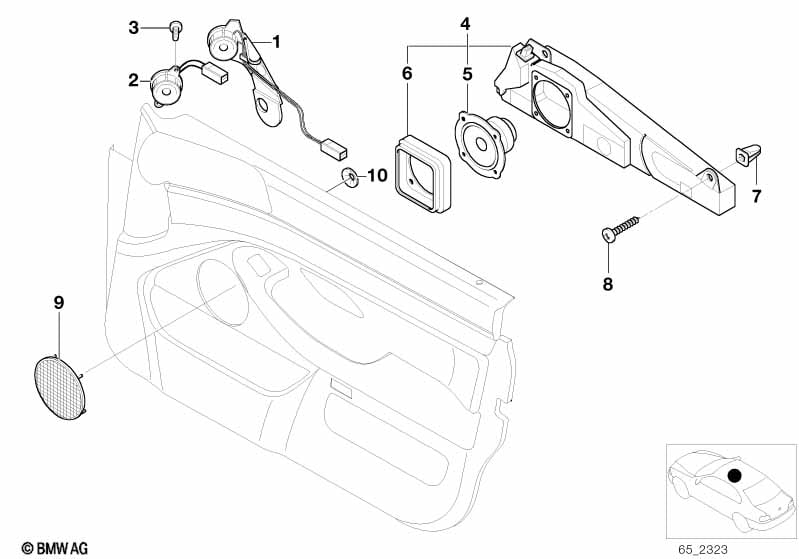

This Single parts f front door hifi system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi speaker system |
S676A=Yes |
||||||||
| 01 | Left hifi loudspeaker tweeter | 1 | 65138362529 | $50.73 | Shop at ECS Tuning | |||||
| 01 | Right hifi loudspeaker tweeter | 1 | 65138362530 | $50.73 | Shop at ECS Tuning | |||||
| 02 | MID-range loudspeaker | 2 | 65138374982 | $48.28 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | 2 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| 04 | Left front door loudspeaker box | HIFI SYSTEM | 1 | 65138360781 | $104.80 | Shop at ECS Tuning | ||||
| 04 | Right front door loudspeaker box | HIFI SYSTEM | 1 | 65138360782 | $104.80 | Shop at ECS Tuning | ||||
| 05 | Loudspeaker | STEREO / HIFI | 2 | 65138352687 | $46.88 | Shop at ECS Tuning | ||||
| 06 | Sound insulation ring for loudspeaker | 2 | 65138369578 | $9.57 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | ST 4.8 WEISS | 6 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X16 | 6 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | SCHWARZ | 2 | 51418178241 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover Loudspeaker | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 09 | Cover Loudspeaker | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 10 | Spring nut | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
