Single parts f package shelf hifi system for BMW 5 Series E39 523i (2000)

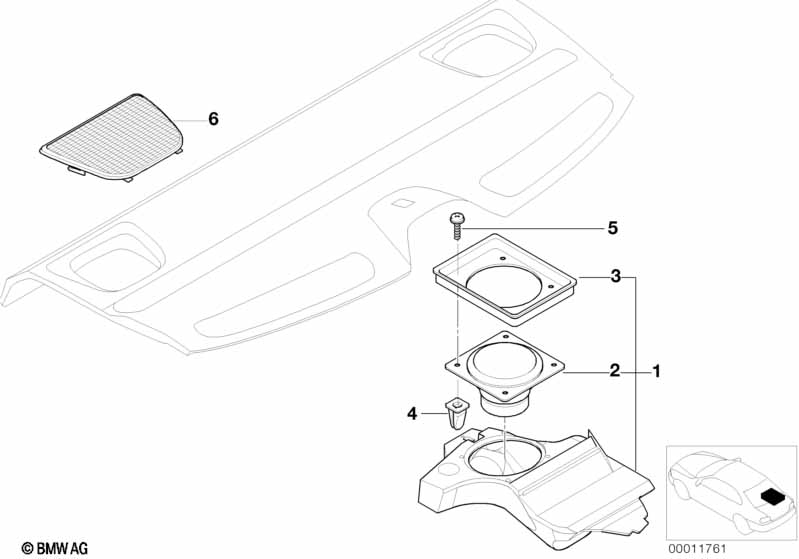

This Single parts f package shelf hifi system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi speaker system |
S676A=Yes |
||||||||
| 01 | Rear left loudspeaker | HIFI SYSTEM | 1 | 65138360787 | $104.80 | Shop at ECS Tuning | ||||
| 01 | Rear right loudspeaker | HIFI SYSTEM | 1 | 65138360788 | $104.80 | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | STEREO / HIFI | 2 | 65138352687 | $46.88 | Shop at ECS Tuning | ||||
| 03 | Sound insulation ring for loudspeaker | 2 | 65138369579 | $9.57 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,8X16 | 4 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | SCHWARZ | 2 | 51468230768 | $17.00 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | GRAU | 2 | 51468230769 | $17.00 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | SANDBEIGE | 2 | 51468230770 | $17.00 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | MARINEBLAU | 2 | 51468230771 | $17.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover Loudspeaker | DUNKELGRUEN | 2 | 51468230772 | $16.74 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
