Alarm systems for BMW 5 Series E39 528i (2000)

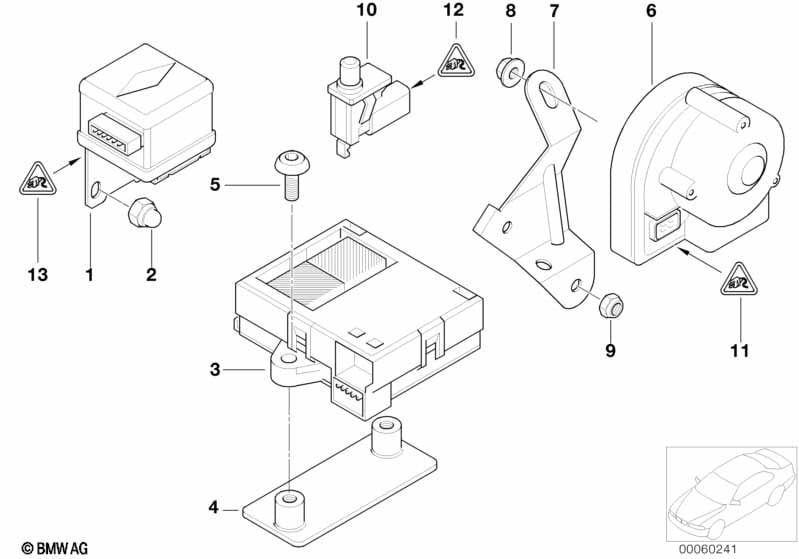

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inclination indicator | 1 | 09/1998 | 65756923215 | $156.60 | Shop at ECS Tuning | ||||
| 02 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Ultra sonic-module | 1 | 09/1998 | 65756938048 | $163.68 | Shop at ECS Tuning | ||||
| 06 | Alternative power siren | 1 | 65758383152 | $141.92 | Shop at ECS Tuning | |||||
| 07 | Bracket alternative power siren | 1 | 65758368269 | $5.13 | Shop at ECS Tuning | |||||
| 08 | Hex nut | 1 | 03/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Switch | 1 | 61319119057 | $14.12 | Shop at ECS Tuning | |||||
| 11 | Universal socket housing uncoded | 4 POL. | 1 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 12 | Universal socket housing uncoded | 3 POL. | 1 | 07/2003 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 07/2003 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 07/2003 | 61130056961 | Shop at ECS Tuning | ||||
| 12 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 13 | Universal socket housing uncoded | 6 POL. | 1 | 09/1998 | 07/2003 | 61136909058 | $1.15 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 09/1998 | 07/2003 | 61130005197 | $1.65 | Shop at ECS Tuning | ||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 09/1998 | 07/2003 | 61130056960 | Shop at ECS Tuning | |||
| 13 | Rep. kit for socket housing | 6 POL. | 1 | 09/1998 | 61132359992 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 09/1998 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 09/1998 | 61130056960 | Shop at ECS Tuning | ||||
