Navigation system/video module for BMW 5 Series E39 540iP (2000)

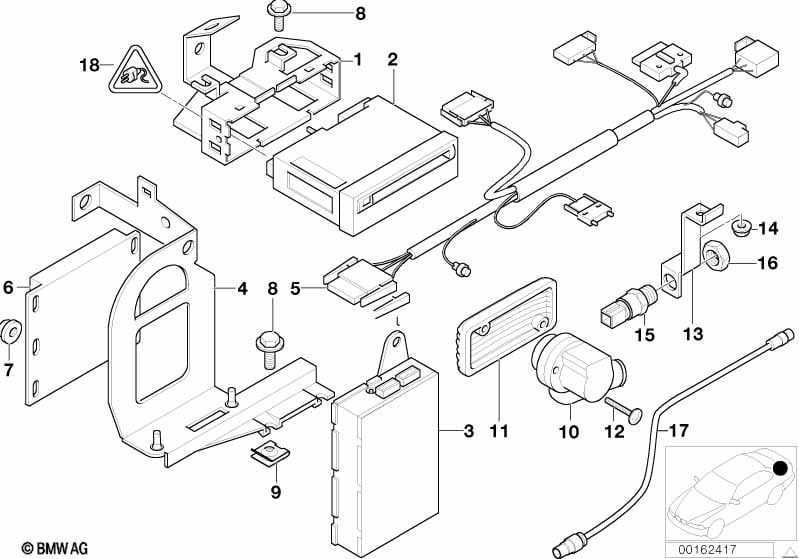

This Navigation system/video module technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support bracket, navigation computer | 1 | 65906909251 | $21.48 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Navigation computer high | 1 | 65906925449 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | RP REMAN video module high uncoded | 1 | 09/1998 | 65509178796 | $783.51 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket for video module | 1 | 65508361458 | $8.21 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Bracket for video module | 1 | 65508376374 | $12.57 | Shop at ECS Tuning | |||||
| 05 | Connecting lead, navigation | MKIII/BITII | 1 | 09/2000 | 09/2001 | 61126907842 | $109.53 | ENDED | Shop at ECS Tuning | |
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | GPS-receiver module | 1 | 09/1997 | 65906905921 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut | AM5-8-ZNNIV SI | 2 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X14-8.8-ZNNIV | 2 | 09/1997 | 07119904269 | $0.36 | Shop at ECS Tuning | |||
| 09 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 18 | Universal socket housing uncoded | 18 POL. | 2 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 2 | 61132471241 | Shop at ECS Tuning | |||||
