on board monitor / TV amplifier for BMW 5 Series E39 523i (2000)

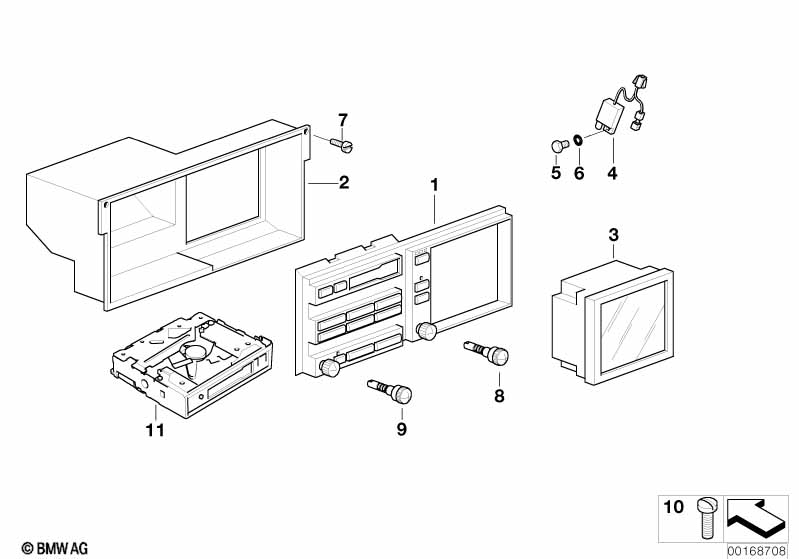

This on board monitor / TV amplifier technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | On board monitor cover | 1 | 09/2000 | 65528372591 | $331.27 | Shop at ECS Tuning | ||||
| For vehicles with Radio control Oceania |
S825A=Yes |
|||||||||
| 01 | On board monitor cover | 1 | 09/2000 | 65528372593 | $331.27 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | On board monitor cover | 1 | 09/2000 | 65528372592 | $311.36 | ENDED | Shop at ECS Tuning | |||
| Use TN 9 176 544 for disk drive problems. |
||||||||||
| 02 | Housing with cassette drive | 1 | 09/2000 | 65528386303 | $442.62 | ENDED | Shop at ECS Tuning | |||
| 03 | Conversion kit for display/navigation | 1 | 09/1997 | 09/2000 | 65529184353 | $2346.12 | Shop at ECS Tuning | |||
| 04 | Left TV amplifier | BLAU | 1 | 65248362532 | $70.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Right TV amplifier | BLAU | 1 | 65248362533 | $70.52 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M5X15 | 2 | 84318361762 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Tooth washer | A6,4 | 2 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | M3X8-4.8-H-ZN | 7 | 07119907602 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Rotary knob on-board monitor, menu | 1 | 09/2000 | 65528384685 | $10.69 | Shop at ECS Tuning | ||||
| 09 | Rotary knob on-board monitor, radio | 1 | 09/2000 | 65528384686 | $10.69 | Shop at ECS Tuning | ||||
| 10 | Countersunk screw | M3X8-4.8-H-ZNFE | 4 | 07119904046 | $0.11 | Shop at ECS Tuning | ||||
| Use this part number for disk drive problems. Observe repair instructions under Topic 6552. |
||||||||||
| 11 | Cassette drive | 1 | 09/2000 | 65529176544 | $146.32 | ENDED | Shop at ECS Tuning | |||
