Parts f lateral/rear window antenna for BMW 5 Series E39 540i (2003)

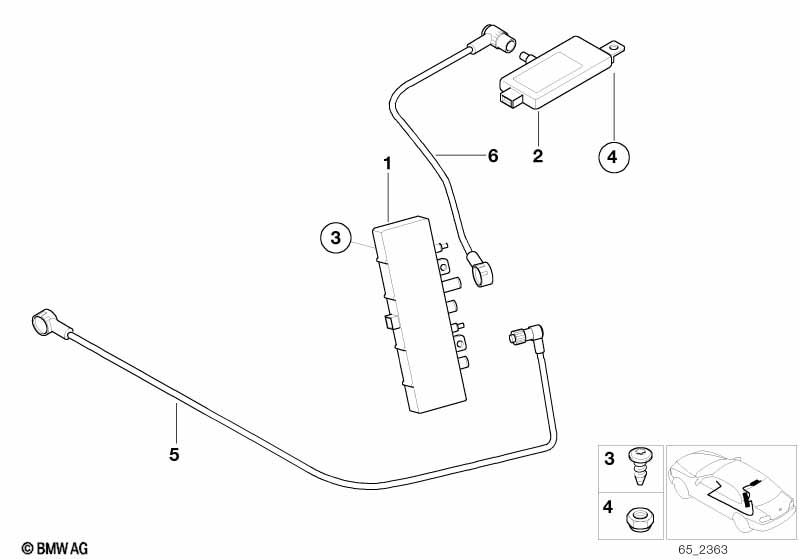

This Parts f lateral/rear window antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side window antenna amplifier | 1 | 65268368878 | $278.20 | Shop at ECS Tuning | |||||
| 02 | Amplifier f rear window antenna | 1 | 65258361507 | $85.30 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Flange nut | M5 | 1 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 05 | Antenna cable | 4920MM | 1 | 65248361505 | $41.27 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 05 | Antenna cable | 1400MM | 1 | 65258363293 | $43.75 | Shop at ECS Tuning | ||||
| 06 | Antenna cable | 3840MM | 1 | 65258361508 | $75.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540i Parts f lateral/rear window antenna?
- This technical diagram illustrates the Parts f lateral/rear window antenna within the Audio, Navigation, Electronic Systems group for the 5 Series E39 540i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Side window antenna amplifier (Part #65268368878).
- Which models use the hardware listed in this Parts f lateral/rear window antenna?
- The hardware and components featured in the Parts f lateral/rear window antenna are specific to the 5 Series E39 540i produced during 2003. These technical specifications ensure that parts like the Side window antenna amplifier (65268368878) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Parts f lateral/rear window antenna assembly?
- Each item in the Parts f lateral/rear window antenna corresponds to the numbered list below the illustration. For the 5 Series E39 540i, you can identify the Side window antenna amplifier by locating its position on the schematic, which then links to the official BMW part number 65268368878 for the Audio, Navigation, Electronic Systems section.
