Suppressing socket for BMW R50/5-R90S 69-76 R90S (1976)

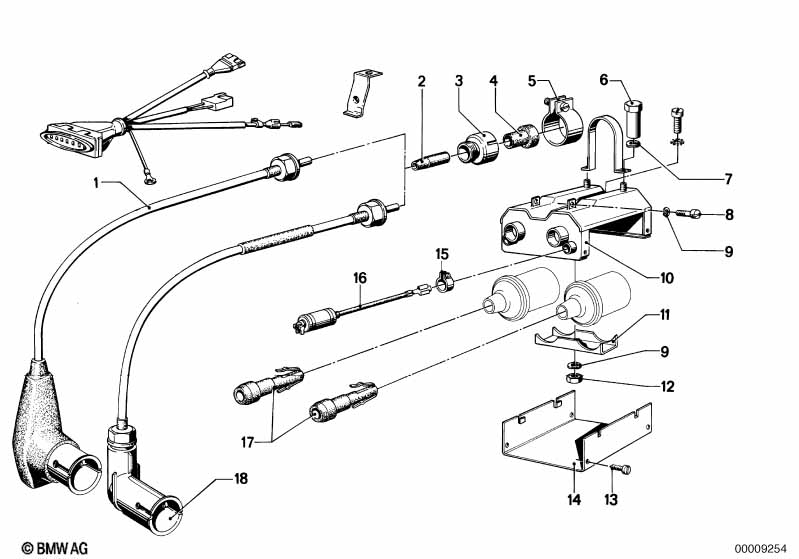

This Suppressing socket technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suppressed ignition wire | 2 | 12121243343 | $93.24 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pipe | 2 | 61131354371 | ENDED | Shop at ECS Tuning | |||||
| 03 | Clamp ring | 2 | 65311354369 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bush | 2 | 61131354520 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X10-8.8-ZNS3 | 3 | 07129903804 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6-ZNS3 | 3 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 10 | Suppression box | 1 | 65311243215 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bracket,ignition coil | 1 | 65311352366 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,5X6,5 | 4 | 07119907774 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Cover | 1 | 65311352361 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 16 | Suppression capacitor | 1 | 65311353087 | ENDED, +core | Shop at ECS Tuning | |||||
| 17 | Suppressing socket | 2 | 65311354395 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
