Suppression capacitor for BMW R50/5-R90S 69-76 R90S (1976)

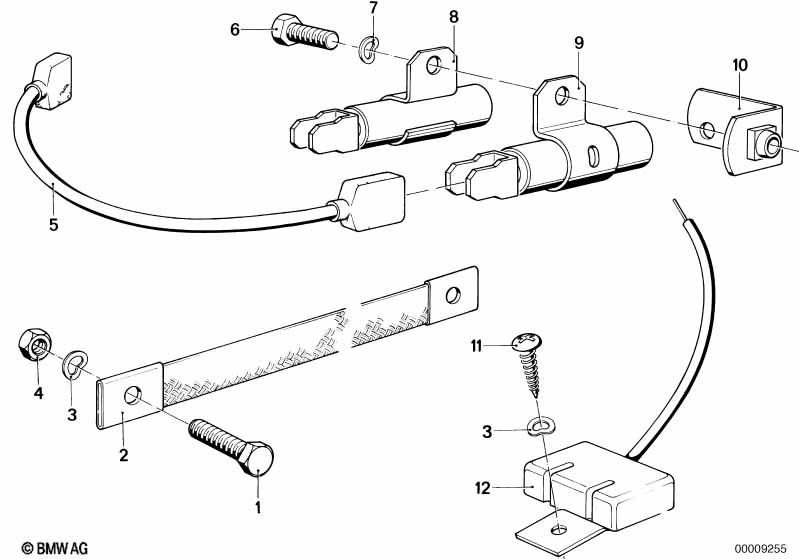

This Suppression capacitor technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Ground cable | 1 | 65311357880 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Suppression capacitor | 1 | 65311352705 | ENDED | Shop at ECS Tuning | |||||
| 09 | Suppression capacitor | 1 | 65311243344 | ENDED | Shop at ECS Tuning | |||||
| 10 | Support | 2 | 65311352581 | ENDED | Shop at ECS Tuning | |||||
| 12 | Suppression capacitor | 0,47MF | 2 | 65311357878 | $14.99 | Shop at ECS Tuning |
