Anti-interference kit for BMW R45-R65LS..78-85 R65

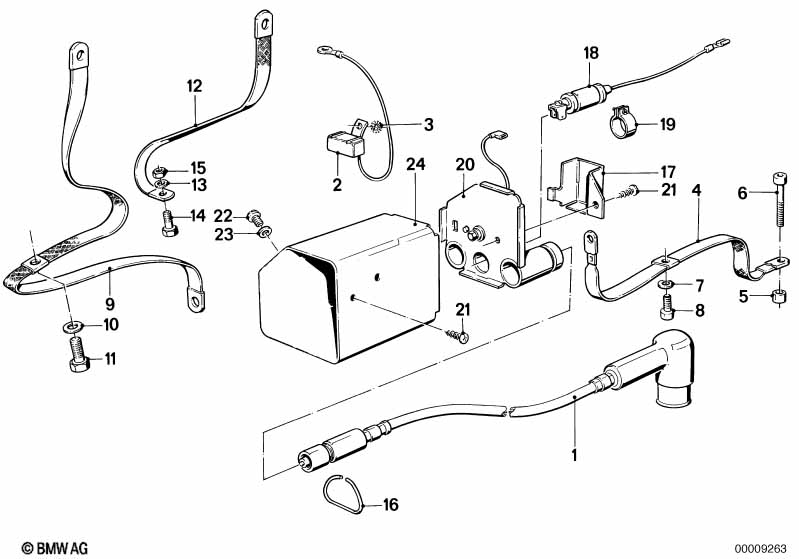

This Anti-interference kit technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wire | VOLLENTSTOERT | 2 | 09/1980 | 12121243748 | +core | Shop at ECS Tuning | |||
| 02 | Suppression capacitor | 1 | 09/1980 | 65311243859 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tooth washer | J6,4 | 1 | 09/1980 | 07119936134 | $0.67 | Shop at ECS Tuning | |||
| 04 | Earth strap | 250MM | 1 | 09/1980 | 65311244238 | ENDED | Shop at ECS Tuning | |||
| 05 | Bush | 1 | 09/1980 | 61131354359 | $3.71 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | M6X60-8.8-ZNS3 | 1 | 09/1980 | 07119904509 | $2.37 | Shop at ECS Tuning | |||
| 07 | Spring washer Black | B6-ZN | 1 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Washer | 5.3-140 HV-ZNS | 1 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 07 | Wave washer | B6-ZNS3 | 1 | 09/1980 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 08 | ISA screw | M6X12-8.8-ZNNIV | 1 | 09/1980 | 07129905867 | Shop at ECS Tuning | ||||
| 09 | Earth strap | 480MM | 1 | 09/1980 | 65311244288 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 8,4X18X2MM | 1 | 09/1980 | 07149180923 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 09/1980 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 16 | contact spring | 2 | 09/1980 | 65311243826 | ENDED | Shop at ECS Tuning | ||||
| 17 | Covering cap | 1 | 09/1980 | 65311244327 | ENDED | Shop at ECS Tuning | ||||
| 18 | Suppression capacitor | 1 | 09/1980 | 65311353087 | ENDED, +core | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L12-15 | 1 | 09/1980 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 20 | Cover | 1 | 09/1980 | 12/1990 | 65311244339 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tubing | KL.15 | 1 | 09/1980 | 12/1990 | 61121244785 | ENDED | Shop at ECS Tuning | ||
| 21 | Screw | 3 | 09/1980 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 22 | Fillister head screw | M5X8-Z3 | 1 | 09/1980 | 07119906822 | $0.18 | Shop at ECS Tuning | |||
| 23 | Washer | 10X5,3X1-200 HV | 2 | 09/1980 | 07119904206 | Shop at ECS Tuning | ||||
| 23 | Washer | 5.3-140 HV-ZNS | 2 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 24 | Sleeve | 1 | 09/1980 | 65311244017 | ENDED | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
