Supplementary parts 2.componente for BMW 5 Series E34 518i (1994)

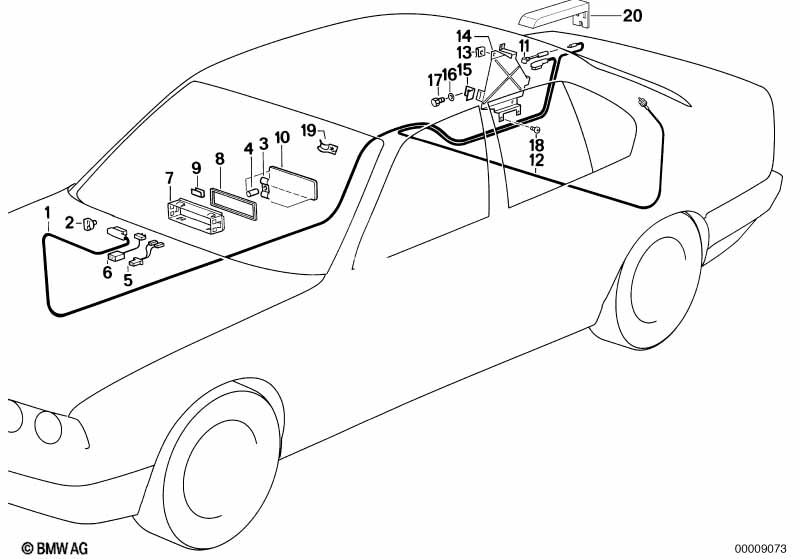

This Supplementary parts 2.componente technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection cable | BAV.ELECTR.CD | 1 | 65121389529 | ENDED | Shop at ECS Tuning | ||||
| 01 | Connection cable | BECKER MEX.CD | 1 | 65121391981 | ENDED | Shop at ECS Tuning | ||||
| 01 | Connection cable | PROF./PROF.RDS | 1 | 65128350411 | ENDED | Shop at ECS Tuning | ||||
| 02 | Push-button | 3 | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 03 | Tandem clamp | BAV.ELECTR.CD | 1 | 65111390563 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 05 | Adapter lead | 1 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adapter lead | HIFI/4-KANAL | 1 | 61101388934 | $36.85 | ENDED | Shop at ECS Tuning | |||
| 07 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 08 | Frame | BECKER | 1 | 65121389614 | $2.47 | Shop at ECS Tuning | ||||
| 09 | Clamp | BECKER | 2 | 65121385469 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
| 12 | Antenna cable | 5000MM | 1 | 65248350099 | $25.42 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| 13 | Plug-in nut | M5 | 3 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 65121391246 | Shop at ECS Tuning | ||||||
| 15 | Support | 1 | 16121150544 | Shop at ECS Tuning | ||||||
| 16 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 16 | Washer | 6-200 HV-ZNS3 | 1 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X8 | 1 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 18 | Fillister head self-tapping screw | ST4,8X13-Z1 | 3 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Holder | 1 | 65121382215 | $1.43 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
