Single components stereo system for BMW 3 Series E36 325tds (1998)

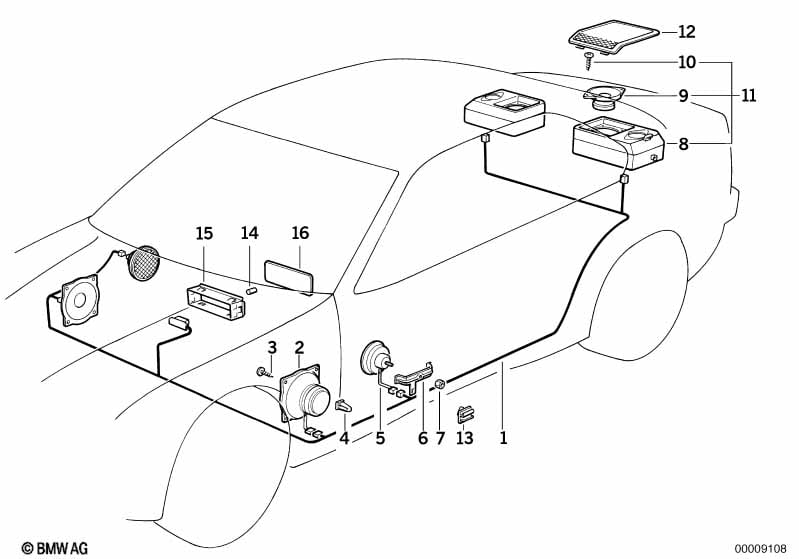

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness Stereo | 1 | 09/1993 | 61128363409 | $103.12 | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | 4 OHM 18/25WATT | 2 | 09/1993 | 65138369951 | $31.27 | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,8X13-Z1 | 8 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Tweeter | SCHWARZ | 2 | 09/1994 | 65138362940 | $45.28 | Shop at ECS Tuning | |||
| 05 | Tweeter | GRAU | 2 | 09/1994 | 65138362946 | $45.28 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 05 | Chrome Tweeter | SCHWARZ | 2 | 65132268911 | $65.29 | Shop at ECS Tuning | ||||
| 05 | Chrome Tweeter | BEIGE | 2 | 65132268912 | $63.92 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Chrome Tweeter | GRAU | 2 | 65132268913 | $65.29 | ENDED | Shop at ECS Tuning | |||
| 06 | Loudspeaker threaded ring | 2 | 09/1994 | 65138360690 | $1.77 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-4-ZN | 2 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | 4X10 | 4 | 09/1991 | 51161954785 | $0.22 | Shop at ECS Tuning | |||
| 11 | Rear left loudspeaker | STEREO SYSTEM | 1 | 03/1996 | 65138370867 | $105.68 | Shop at ECS Tuning | |||
| 11 | Rear right loudspeaker | STEREO SYSTEM | 1 | 03/1996 | 65138370868 | $105.68 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker left | ANTHRAZIT 93 | 1 | 09/1993 | 51468174977 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker right | ANTHRAZIT 93 | 1 | 09/1993 | 51468174978 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker left | GRAU | 1 | 09/1993 | 51468174979 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker right | GRAU | 1 | 09/1993 | 51468174980 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker left | BEIGE | 1 | 09/1993 | 51468174981 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker right | BEIGE | 1 | 09/1993 | 51468174982 | $16.06 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker left | TUERKIS | 1 | 09/1993 | 51468174983 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker right | TUERKIS | 1 | 09/1993 | 51468174984 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker left | BLAUVIOLETT | 1 | 09/1993 | 51468174985 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker right | BLAUVIOLETT | 1 | 09/1993 | 51468174986 | $16.74 | Shop at ECS Tuning | |||
| 12 | Cover loudspeaker left | SAFRANGELB | 1 | 09/1993 | 51468174987 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker right | SAFRANGELB | 1 | 09/1993 | 51468174988 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker left | ROT | 1 | 09/1993 | 51468174989 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 12 | Cover loudspeaker right | ROT | 1 | 09/1993 | 51468174990 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 13 | Bracket, plug connection black | 2 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 14 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 15 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 16 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
