Trunk trim panel for BMW 8 Series E31 840i (1996)

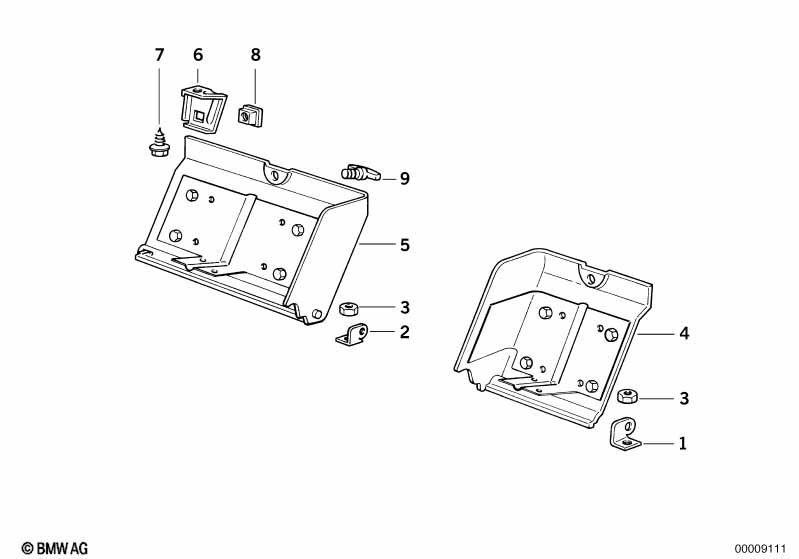

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket left | 2 | 51478108407 | $5.68 | Shop at ECS Tuning | |||||
| 02 | Bracket right | 2 | 51478108408 | $5.68 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 51478108401 | $40.73 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 51478108404 | $124.39 | Shop at ECS Tuning | |||||
| 06 | Catch | 2 | 51168118088 | $13.08 | ENDED | Shop at ECS Tuning | ||||
| 08 | Threaded plug | 2 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 09 | Screw plug | 2 | 71111117440 | $2.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i Trunk trim panel?
- This technical diagram illustrates the Trunk trim panel within the Audio, Navigation, Electronic Systems group for the 8 Series E31 840i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Bracket left (Part #51478108407).
- Which models use the hardware listed in this Trunk trim panel?
- The hardware and components featured in the Trunk trim panel are specific to the 8 Series E31 840i produced during 1996. These technical specifications ensure that parts like the Bracket left (51478108407) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk trim panel assembly?
- Each item in the Trunk trim panel corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Bracket left by locating its position on the schematic, which then links to the official BMW part number 51478108407 for the Audio, Navigation, Electronic Systems section.
