Antenna accessories for BMW 3 Series E36 320i (1995)

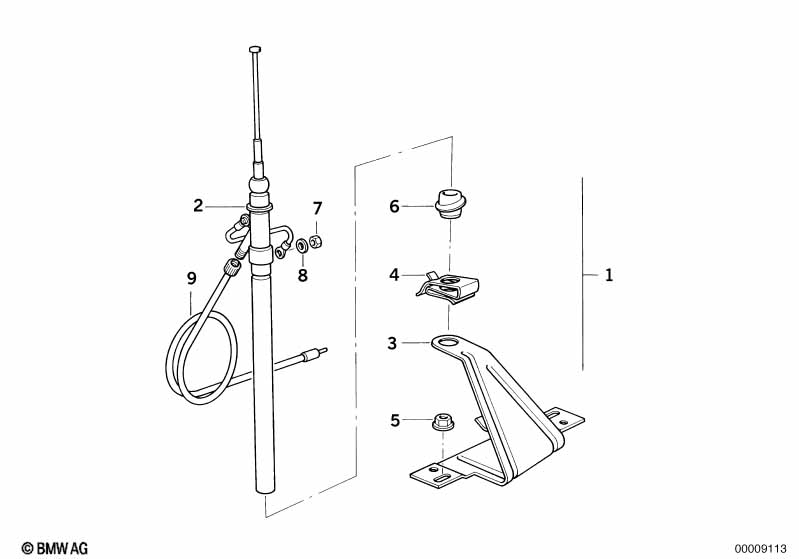

This Antenna accessories technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Telescope chrom | 1 | 65211376010 | $85.14 | Shop at ECS Tuning | |||||
| 03 | Set of fittings rear | 1 | 65129410308 | ENDED | Shop at ECS Tuning | |||||
| 04 | Clamp | 1 | 65211376009 | $1.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Grommet | 1 | 65211376008 | $5.23 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Antenna cable | 4590MM | 1 | 65211394200 | $26.88 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
