Supplementary parts 2.componente for BMW 3 Series E36 325tds (1998)

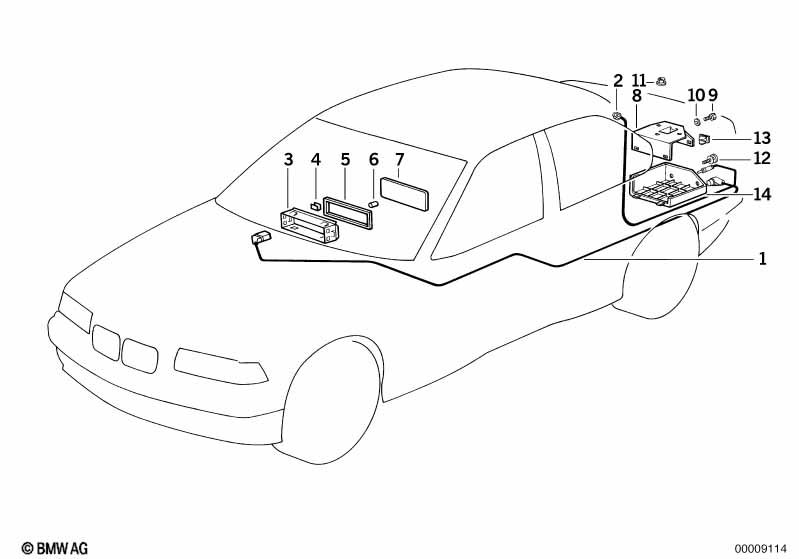

This Supplementary parts 2.componente technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection cable | C-PROFESSIONAL | 1 | 65128359039 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna cable | 1 | 65248353214 | ENDED | Shop at ECS Tuning | |||||
| 03 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 04 | Clamp | BECKER | 2 | 65121385469 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Frame | BECKER | 1 | 65121389614 | $2.47 | Shop at ECS Tuning | ||||
| 06 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 65121393418 | $13.28 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 10 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Push-button | 2 | 51471945266 | $0.55 | Shop at ECS Tuning | |||||
| 13 | Lock insert | 2 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 14 | Cover | 1 | 65128353138 | $5.19 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
