Antenna-Diversity for BMW 5 Series E34 540i (1996)

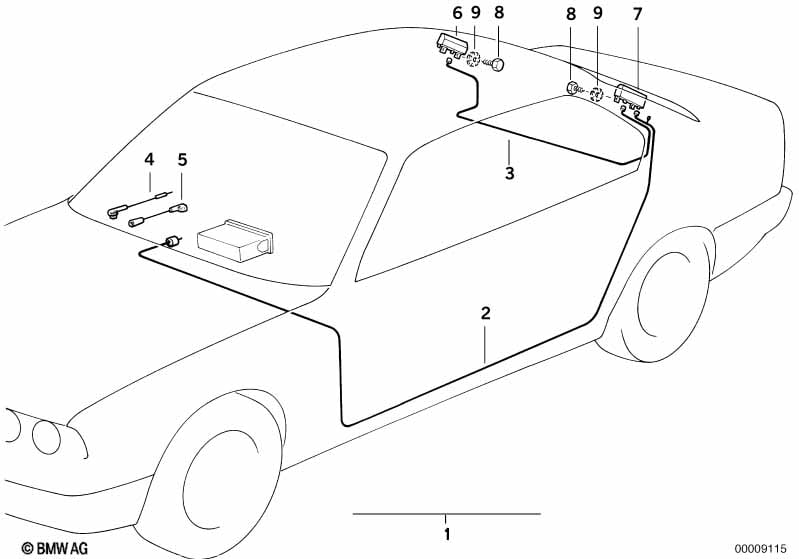

This Antenna-Diversity technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Antenna cable | 5000MM | 1 | 03/1991 | 65258355126 | $111.53 | Shop at ECS Tuning | |||
| 03 | Antenna cable | 2570MM | 1 | 03/1991 | 65248355137 | $19.10 | Shop at ECS Tuning | |||
| 04 | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| 05 | Antenna adapter tubing | 1 | 65121388950 | $14.22 | Shop at ECS Tuning | |||||
| 06 | Amplifier/trap circuit | 1 | 03/1991 | 65258351246 | $91.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Amplifier | 1 | 03/1991 | 65248351250 | $197.28 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex head screw | L=15 MM | 4 | 03/1991 | 65221370813 | $0.38 | Shop at ECS Tuning | |||
| 09 | Tooth washer | A6,4 | 4 | 03/1991 | 07119936133 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Antenna-Diversity?
- This technical diagram illustrates the Antenna-Diversity within the Audio, Navigation, Electronic Systems group for the 5 Series E34 540i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Antenna cable (Part #65258355126).
- Which models use the hardware listed in this Antenna-Diversity?
- The hardware and components featured in the Antenna-Diversity are specific to the 5 Series E34 540i produced during 1996. These technical specifications ensure that parts like the Antenna cable (65258355126) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna-Diversity assembly?
- Each item in the Antenna-Diversity corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Antenna cable by locating its position on the schematic, which then links to the official BMW part number 65258355126 for the Audio, Navigation, Electronic Systems section.
