Single components stereo system for BMW 5 Series E34 520i (1996)

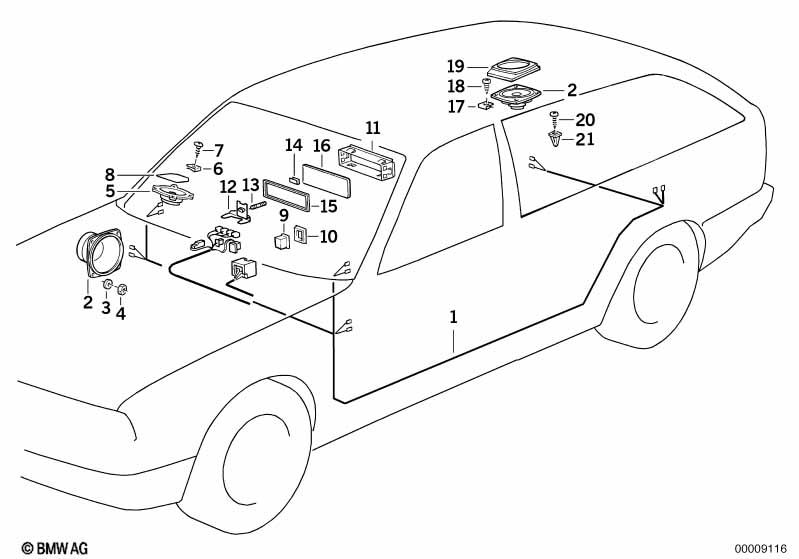

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness Stereo | 1 | 61128359127 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL |
||||||||||
| 01 | Audio wiring harness Stereo | 1 | 61128359176 | ENDED | Shop at ECS Tuning | |||||
| 02 | Loudspeaker | 4 | 65131386541 | Shop at ECS Tuning | ||||||
| 03 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Loudspeaker | 8 OHM/25/40W | 2 | 65131374469 | $37.22 | Shop at ECS Tuning | ||||
| 06 | C-clip nut | 8 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,2X13 | 8 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Foam rubber insert under loudspeak.cover | STEREO | 2 | 65131388628 | $0.58 | Shop at ECS Tuning | ||||
| 09 | Fader control with cylindrical connector | 1 | 65121379048 | $39.55 | Shop at ECS Tuning | |||||
| 10 | Frame fading control | 1 | 65121384407 | $1.12 | Shop at ECS Tuning | |||||
| 11 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 65111384208 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 12 | Holder | 1 | 65111384108 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 13 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 14 | Clamp | BECKER | 2 | 65121385469 | $0.22 | Shop at ECS Tuning | ||||
| 15 | Frame | BECKER | 1 | 65121389614 | $2.47 | Shop at ECS Tuning | ||||
| 16 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
| 17 | Body nut | M6 | 8 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Fillister head self-tapping screw | ST3,9X9,5-F | 8 | 07119907910 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Cover Loudspeaker | SILBERGRAU | 2 | 51448120955 | $22.16 | ENDED | Shop at ECS Tuning | |||
| 19 | Cover Loudspeaker | PERGAMENT | 2 | 51448120956 | $22.16 | ENDED | Shop at ECS Tuning | |||
| 20 | Fillister head self-tapping screw | ST4,2X13-Z1 | 6 | 07119907943 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 20 | Sheet metal screw | 4,2X13 | 6 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Expanding nut | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
