Antenna accessories for BMW 5 Series E28 525e (1987)

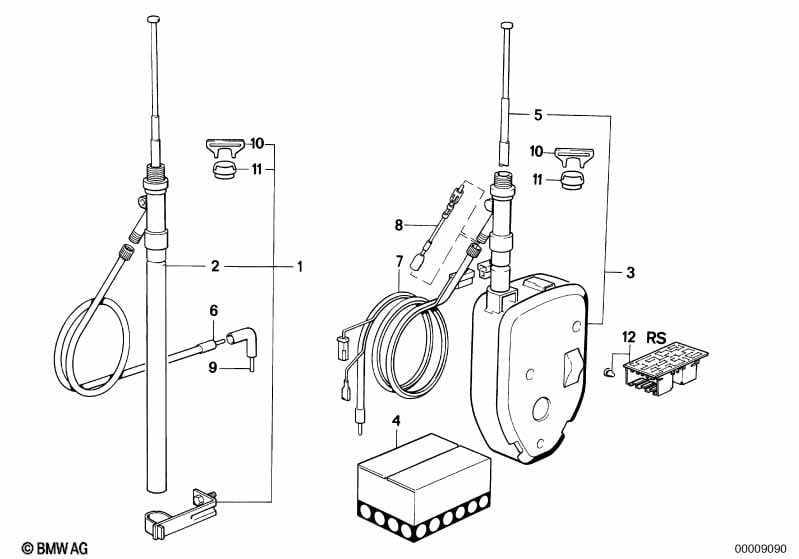

This Antenna accessories technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set disappear.antenna rear | 1 | 09/1983 | 65219057166 | $53.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Installing set disappear.antenna rear | SCHWARZ | 1 | 09/1983 | 65219058643 | ENDED | Shop at ECS Tuning | |||
| 02 | Disappearing antenna, screwed rear | 1 | 09/1983 | 65211369756 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 02 | Disappearing antenna, screwed rear | SCHWARZ | 1 | 09/1983 | 65211959723 | ENDED | Shop at ECS Tuning | |||
| 03 | Automatic antenna screwed rear | SCHWARZ/CHROM | 1 | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Installing set automatic antenna screwed | 1 | 65221369751 | ENDED | Shop at ECS Tuning | |||||
| 03 | Automatic antenna screwed rear | SCHWARZ/CHROM | 1 | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Installing set automatic antenna | SCHWARZ/CHROM | 1 | 65229058642 | ENDED | Shop at ECS Tuning | ||||
| 04 | Installing set automatic antenna screwed | 1 | 65221369751 | ENDED | Shop at ECS Tuning | |||||
| 04 | Installing set automatic antenna | SCHWARZ/CHROM | 1 | 65229058642 | ENDED | Shop at ECS Tuning | ||||
| 05 | Telescope chrom | 1 | 65221381336 | Shop at ECS Tuning | ||||||
| 05 | Telescope | 1 | 65221369189 | $44.53 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Automatic antenna screwed rear | X | 65221368502 | $199.76 | ENDED | Shop at ECS Tuning | ||||
| -- | Automatic antenna screwed rear | X | 65221375555 | ENDED | Shop at ECS Tuning | |||||
| -- | Automatic antenna screwed rear | SCHWARZ/CHROM | X | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 05 | Telescope | 1 | 65221375569 | $72.64 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Automatic antenna screwed rear | X | 65221375555 | ENDED | Shop at ECS Tuning | |||||
| -- | Automatic antenna screwed rear | SCHWARZ/CHROM | X | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 06 | Automatic antenna screwed rear | SCHWARZ/CHROM | 1 | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 06 | Antenna cable | 5000MM | 1 | 65248350099 | $25.42 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| 07 | Wiring rear | 5400MM | 1 | 09/1983 | 65221363589 | $55.76 | ENDED | Shop at ECS Tuning | ||
| 10 | Antenna key | 1 | 65221369478 | $1.04 | ENDED | Shop at ECS Tuning | ||||
| 11 | Nut | CHROM | 1 | 65221369372 | $1.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic antenna rear |
=Yes |
|||||||||
| 12 | Repair kit automatic antenna | 1 | 65221379527 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
