Radio-installation parts for BMW 7 Series E23 728i (1982)

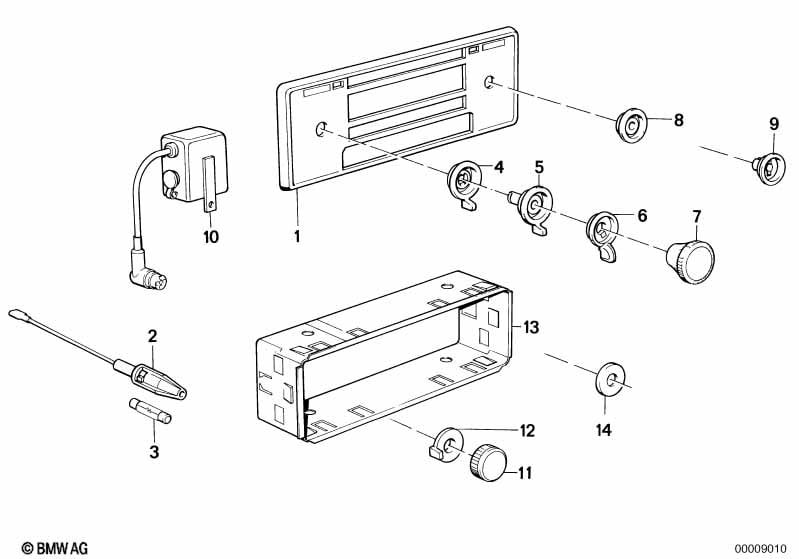

This Radio-installation parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | BAVARIA CR | 1 | 65111366144 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover | BAVARIA CR/VF | 1 | 65111366145 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVARIA CR | 1 | 65111366341 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVARIA CR/VF | 1 | 65111366342 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVAR CR/VF REV | 1 | 65111367854 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVARIA CR REV | 1 | 65111367855 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVARIA C | 1 | 65111379334 | $47.99 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover plate radio with station buttons | BAVARIA CRIII | 1 | 65121375940 | $24.55 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover plate radio with station buttons | BAV.CR DIGIT. | 1 | 65121375950 | $62.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover plate radio with station buttons | BAVARIA EUROPA | 1 | 65121376101 | $23.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover plate radio with station buttons | BAV.EUR.DIGIT. | 1 | 65121376102 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover plate radio with station buttons | BAVARIA C REVER | 1 | 65121379335 | $56.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover plate radio with station buttons | BAVARIA C EURO | 1 | 65121379336 | $47.99 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover | BAVARIA (A) | 1 | 65121379987 | $25.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Battery cable | 1 | 65111364049 | $4.41 | Shop at ECS Tuning | |||||
| 03 | Fuse | T3,15 | 1 | 07119976100 | $3.64 | Shop at ECS Tuning | ||||
| 03 | Fuse | T2,0 | 1 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuse | T2,5 | 1 | 07119976102 | $3.15 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuse | T4,0 | 1 | 07119976103 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuse | T10 | 1 | 61131380468 | $1.88 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuse | 5A | 1 | 65111366117 | $1.55 | Shop at ECS Tuning | ||||
| 04 | Tone control handle | MONO/STEREO | 1 | 65111372059 | $1.41 | ENDED | Shop at ECS Tuning | |||
| 05 | Tone control handle | STEREO | 1 | 65111366435 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Tone control handle | STEREO CR | 1 | 65111366183 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rotary knob | 2 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rotary knob | BMW | 1 | 65111376876 | $2.86 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. radio BAVARIA ELECTRONIC | X | 65121376031 | ENDED | Shop at ECS Tuning | |||||
| -- | Radio Bavaria Electronic | 8-OHM | X | 65129057881 | $1249.92 | ENDED | Shop at ECS Tuning | |||
| -- | Radio Bavaria C Exclusive | 4-OHM | X | 65129058625 | ENDED | Shop at ECS Tuning | ||||
| -- | Radio Bavaria C Exclusive | 4-OHM | X | 65129061102 | ENDED | Shop at ECS Tuning | ||||
| 08 | Decorative washer | MONO/STEREO | 1 | 65111364566 | ENDED | Shop at ECS Tuning | ||||
| 09 | Decorative washer | STEREO CR | 1 | 65111366184 | $1.46 | ENDED | Shop at ECS Tuning | |||
| 10 | Automatic suppressing system | STEREO CR | 1 | 65111364441 | $117.18 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA CR III RADIO BAVARIA EUROPA RADIO BAVARIA CR DIGITAL RADIO BAVARIA EUROPA DIGITAL |
||||||||||
| 11 | Rotary knob | BMW | X | 65121377999 | $3.05 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA RADIO BAVARIA C RADIO BAVARIA C EURO RADIO BAVARIA C REVERSE |
||||||||||
| 11 | Rotary knob | BMW | 1 | 65121377999 | $3.05 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA CR III RADIO BAVARIA EUROPA RADIO BAVARIA CR DIGITAL RADIO BAVARIA EUROPA DIGITAL |
||||||||||
| 12 | Tone control handle | STEREO | X | 65121375947 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 13 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 14 | Decorative washer | STEREO | X | 65121375948 | $1.12 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
