Single components stereo system for BMW 5 Series E28 525i (1987)

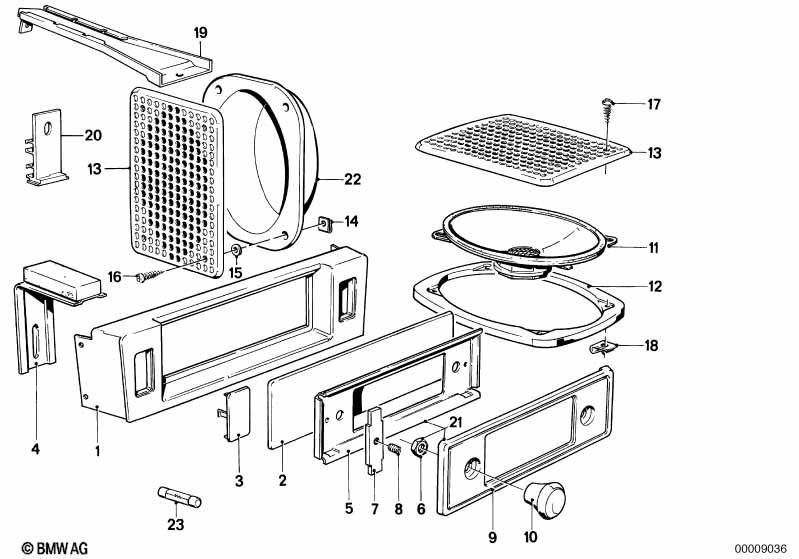

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 65111367162 | ENDED | Shop at ECS Tuning | |||||
| 02 | Radio frame | 1 | 64111368515 | $25.40 | Shop at ECS Tuning | |||||
| 03 | Plug | 2 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 04 | Support | 1 | 65111369658 | $2.32 | ENDED | Shop at ECS Tuning | ||||
| 05 | Carrier | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 06 | Nut | 1 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 07 | Holder | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Grub screw | M6X12 | 1 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover | 2 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 10 | Rotary knob | 2 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 11 | Loudspeaker | 4-OHM/8/20W | 4 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 12 | Spacer | ANTHRAZIT | 2 | 65121369884 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 12 | Spacer | PACIFIC | 2 | 65121369885 | $3.74 | ENDED | Shop at ECS Tuning | |||
| 12 | Spacer | LAMA | 2 | 65121377742 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover Loudspeaker | ANTHRAZIT | 4 | 65121367715 | $7.96 | Shop at ECS Tuning | ||||
| 13 | Cover Loudspeaker | PACIFIC | 4 | 65121367716 | $7.96 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover Loudspeaker | PINIENGRUEN | 4 | 65121370199 | $16.18 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover Loudspeaker | NUTRIA | 4 | 65121373235 | $5.62 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover Loudspeaker | PERLBEIGE | 4 | 65121373236 | $28.14 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover Loudspeaker | LAMA | 4 | 65121377741 | $5.62 | ENDED | Shop at ECS Tuning | |||
| 14 | Body nut | B4,2 | 8 | 65111360120 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Shim | 5,5MM | 8 | 65111374608 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 16 | Recessed oval head sheet-metal screw | ST4,2X19 | 8 | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Recessed oval head sheet-metal screw | ST4,2X32 | 8 | 07119902475 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 18 | Body nut | ST4,2-2ZNS | 8 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Guide rail | 1 | 65111368790 | $18.48 | Shop at ECS Tuning | |||||
| 20 | Bracket rear | 1 | 65111363622 | $0.93 | Shop at ECS Tuning | |||||
| 21 | Radio installation-supplementary set | STEREO | 1 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuse | T3,15 | 1 | 07119976100 | $3.64 | Shop at ECS Tuning | ||||
| 23 | Fuse | T2,0 | 1 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuse | T2,5 | 1 | 07119976102 | $3.15 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuse | T4,0 | 1 | 07119976103 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuse | 5A | 1 | 65111366117 | $1.55 | Shop at ECS Tuning | ||||
