Single components hifi system for BMW 3 Series E36 328i (1998)

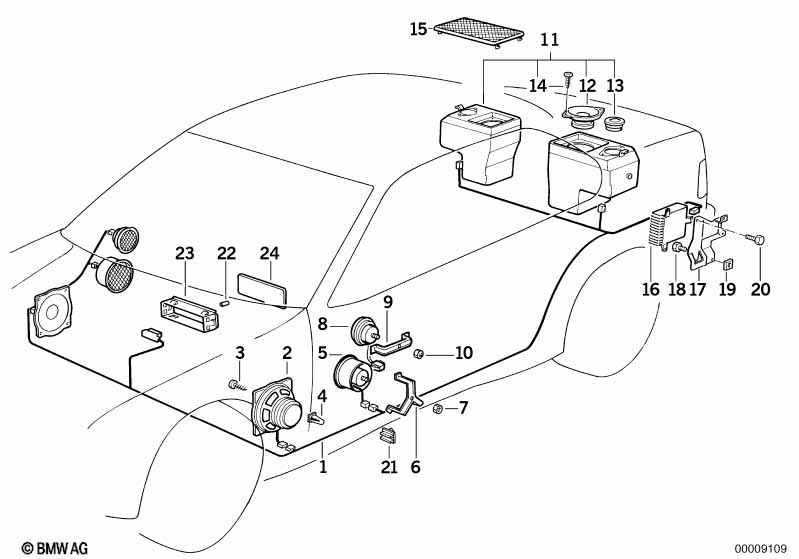

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness HiFi | 1 | 09/1993 | 61128363411 | $170.00 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL |
||||||||||
| 01 | Audio wiring harness HiFi | 1 | 09/1993 | 61128363412 | $161.82 | ENDED | Shop at ECS Tuning | |||
| 02 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X13-Z1 | 8 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | MID-range loudspeaker | SCHWARZ | 2 | 09/1994 | 65138361485 | $63.92 | Shop at ECS Tuning | |||
| 05 | MID-range loudspeaker | BEIGE | 2 | 09/1994 | 65138362957 | $63.92 | ENDED | Shop at ECS Tuning | ||
| 05 | MID-range loudspeaker | GRAU | 2 | 09/1994 | 65138362958 | $63.92 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 05 | Chrome MID-range loudspeaker | SCHWARZ | 2 | 65132268908 | $79.17 | Shop at ECS Tuning | ||||
| 05 | Chrome MID-range loudspeaker | BEIGE | 2 | 65132268909 | $79.17 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Chrome MID-range loudspeaker | GRAU | 2 | 65132268910 | $79.17 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Loudspeaker threaded ring | 2 | 09/1994 | 65138360690 | $1.77 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-4-ZN | 2 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Tweeter | BEIGE | 2 | 09/1994 | 65138362951 | $51.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Tweeter | GRAU | 2 | 09/1994 | 65138362952 | $51.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Top-hifi loudspeaker tweeter | SCHWARZ | 2 | 09/1994 | 65138366461 | $110.95 | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 |
=Yes |
|||||||||
| 08 | Chrome Tweeter | SCHWARZ | 2 | 65132268905 | $71.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Chrome Tweeter | BEIGE | 2 | 65132268906 | $71.78 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Chrome Tweeter | GRAU | 2 | 65132268907 | $71.78 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Tweeter threaded ring | 2 | 09/1994 | 65138360689 | $6.18 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-4-ZN | 2 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Rear left loudspeaker | HIFI SYSTEM | 1 | 03/1996 | 65138370869 | $122.52 | Shop at ECS Tuning | |||
| 11 | Rear right loudspeaker | HIFI SYSTEM | 1 | 03/1996 | 65138370870 | $122.52 | Shop at ECS Tuning | |||
| 13 | Loudspeaker | HIFI SYSTEM | 2 | 09/1993 | 65138375085 | $57.92 | Shop at ECS Tuning | |||
| 14 | Sheet metal screw | ST4,2X19-U2-C-H | 4 | 09/1991 | 07119904176 | $0.25 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker left | ANTHRAZIT 93 | 1 | 09/1993 | 51468174977 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker right | ANTHRAZIT 93 | 1 | 09/1993 | 51468174978 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker left | GRAU | 1 | 09/1993 | 51468174979 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker right | GRAU | 1 | 09/1993 | 51468174980 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker left | BEIGE | 1 | 09/1993 | 51468174981 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker right | BEIGE | 1 | 09/1993 | 51468174982 | $16.06 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker left | TUERKIS | 1 | 09/1993 | 51468174983 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker right | TUERKIS | 1 | 09/1993 | 51468174984 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker left | BLAUVIOLETT | 1 | 09/1993 | 51468174985 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker right | BLAUVIOLETT | 1 | 09/1993 | 51468174986 | $16.74 | Shop at ECS Tuning | |||
| 15 | Cover loudspeaker left | SAFRANGELB | 1 | 09/1993 | 51468174987 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker right | SAFRANGELB | 1 | 09/1993 | 51468174988 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker left | ROT | 1 | 09/1993 | 51468174989 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover loudspeaker right | ROT | 1 | 09/1993 | 51468174990 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 16 | Anti-interfer.(telephone) hifi amplifier | 1 | 09/1993 | 65128371022 | ENDED | Shop at ECS Tuning | ||||
| 17 | Holder Hifi system amplifier | 1 | 65121387608 | $6.29 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X12 | 3 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 19 | C-clip nut | M6-ZNS3 | 3 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X12 | 3 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Bracket, plug connection black | 2 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 22 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 23 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 24 | Cover | 1 | 65111384855 | $3.95 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
