Navigation system/video module for BMW 5 Series E39 528i (1998)

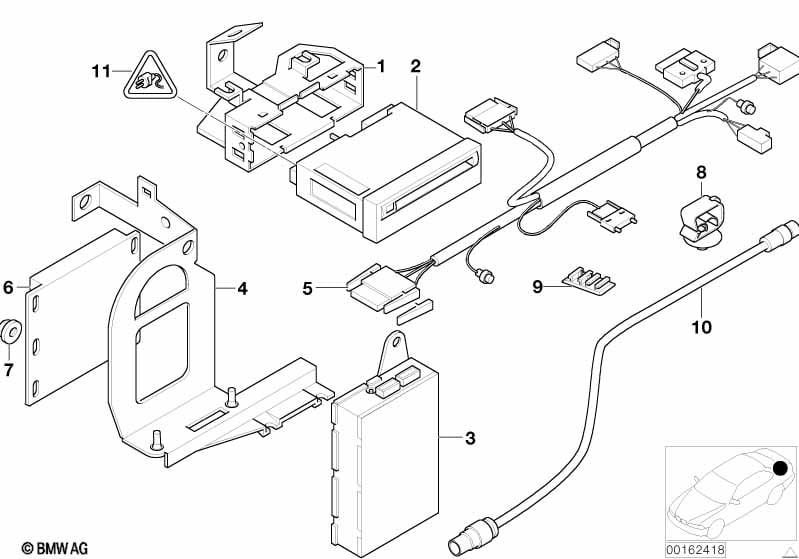

This Navigation system/video module technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support bracket, navigation computer | 1 | 65908368215 | $11.97 | Shop at ECS Tuning | |||||
| 02 | RP REMAN navigation CD computer | MK II | 1 | 09/1997 | 04/1999 | 65906908313 | $2482.94 | ENDED | Shop at ECS Tuning | |
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Navigation computer high | 1 | 09/1997 | 65906925449 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | RP REMAN video module high uncoded | 1 | 09/1997 | 09/1998 | 65506900858 | $664.02 | ENDED | Shop at ECS Tuning | ||
| WHEN ORDERING INDICATE CENTRAL CODING | ||||||||||
| 04 | Bracket for video module | 1 | 65508368214 | $12.08 | Shop at ECS Tuning | |||||
| 05 | Connecting lead, navigation | 1 | 09/1997 | 09/2000 | 61128377442 | $69.17 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Connecting lead, navigation | 1 | 09/1997 | 61128375373 | $160.70 | ENDED | Shop at ECS Tuning | |||
| 06 | GPS-receiver module | 1 | 09/1997 | 08/2000 | 65908385141 | $752.98 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | GPS-receiver module | 1 | 09/1997 | 65906905921 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cap nut | M5 | X | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Cable clip | 1 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Bracket, plug connection white | 1 | 61131381951 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Antenna cable GPS | 2900MM | 1 | 08/2000 | 61128372410 | $44.33 | Shop at ECS Tuning | |||
| 11 | Universal socket housing uncoded | 18 POL. | 2 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 2 | 61132471241 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
