CD changer mounting parts for BMW 3 Series E46 320i (2005)

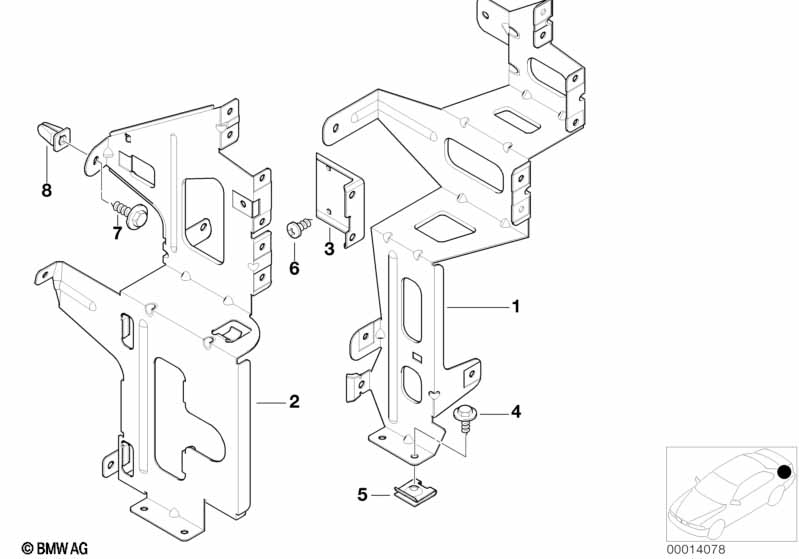

This CD changer mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base support system, front | 1 | 65128370924 | $12.88 | Shop at ECS Tuning | |||||
| 02 | Base support system, rear | 1 | 09/2002 | 84136924552 | $13.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket CD-changer | 2 | 65128370925 | $3.90 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M5X14 | 9 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 9 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M4X6 | 4 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 06 | Countersunk screw | M4X6 | 4 | 07119904307 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 | 3 | 63121374075 | $0.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
