Radio BMW Business CD for BMW 3 Series E46 320d (2005)

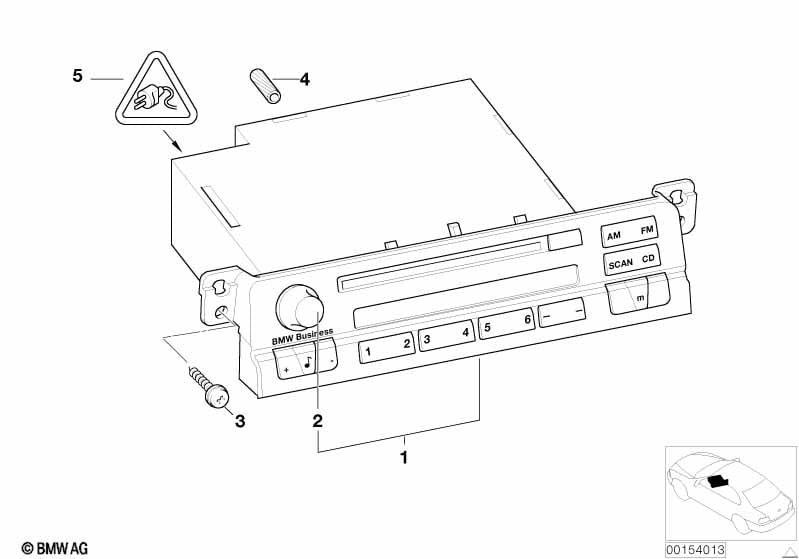

This Radio BMW Business CD technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. radio BMW business CD | 1 | 09/2001 | 09/2005 | 65124160119 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN BMW Business radio CD | 1 | 09/2001 | 65126976887 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Radio control Oceania |
S825A=Yes |
|||||||||
| 01 | Exch. radio BMW business CD | 1 | 09/2001 | 65106927903 | $607.12 | ENDED | Shop at ECS Tuning | |||
| 01 | Radio BMW Business CD | 1 | 09/2004 | 09/2005 | 65126943430 | $665.55 | ENDED | Shop at ECS Tuning | ||
| 01 | Radio BMW Business CD | 1 | 09/2004 | 65126961215 | $678.52 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Exch. radio BMW business CD | 1 | 09/2001 | 65106927903 | $607.12 | ENDED | Shop at ECS Tuning | |||
| 01 | Radio BMW Business CD | 1 | 09/2004 | 09/2005 | 65126943430 | $665.55 | ENDED | Shop at ECS Tuning | ||
| 01 | Radio BMW Business CD | 1 | 09/2004 | 65126961215 | $678.52 | Shop at ECS Tuning | ||||
| 02 | Button left | 1 | 09/2001 | 65126923321 | $9.77 | Shop at ECS Tuning | ||||
| For vehicles with National version japan or Radio control Oceania |
L807A=Yes S825A=Yes |
|||||||||
| 02 | Button | 1 | 09/2004 | 65126924906 | $11.92 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Radio supporting pin | 1 | 65128370535 | $0.94 | Shop at ECS Tuning | |||||
| 05 | Plug housing | 16 POL. | 1 | 09/2001 | 61138384580 | $3.78 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 8 | 09/2001 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 8 | 09/2001 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 09/2001 | 61132471240 | Shop at ECS Tuning | ||||
| -- | Socket housing | 8 POL. | 2 | 09/2001 | 61136905788 | $1.52 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 24 | 09/2001 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Fuse | 1 | 09/2001 | 61138384567 | $0.92 | Shop at ECS Tuning | ||||
| -- | Covering cap | 12 POL. | 1 | 09/2001 | 61138387206 | $2.07 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
