Single parts f front door hifi system for BMW 3 Series E46 320d (2005)

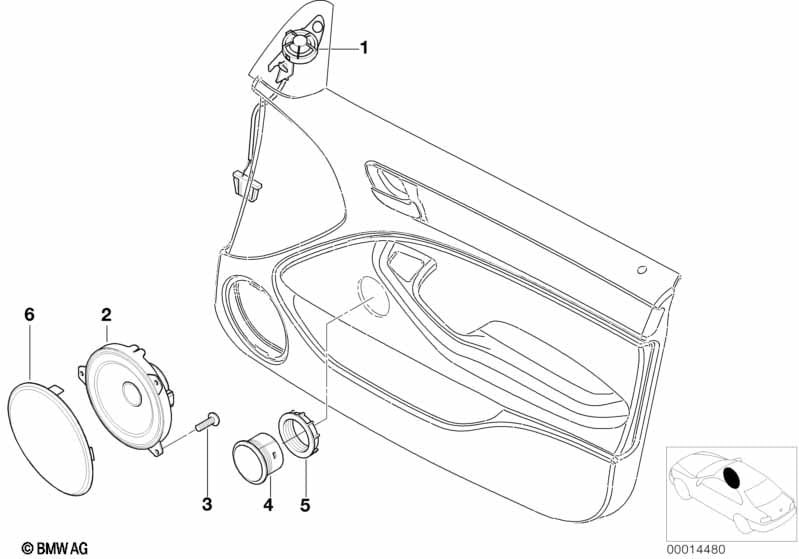

This Single parts f front door hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The wiring for the loudspeakers is included in the door wiring harness |
|||||||||
| 01 | Left hifi loudspeaker tweeter | 1 | 65138368235 | $45.28 | Shop at ECS Tuning | |||||
| 01 | Right hifi loudspeaker tweeter | 1 | 65138368236 | $45.28 | Shop at ECS Tuning | |||||
| 02 | bass loudspeaker hifi system | 50-7.000HZ | 2 | 65138368238 | $46.35 | Shop at ECS Tuning | ||||
| 03 | Saucer-head screw | 6 | 51168107577 | $0.25 | Shop at ECS Tuning | |||||
| 04 | mid-range loudspeaker hifi | SCHWARZ | 2 | 65138368237 | $46.35 | Shop at ECS Tuning | ||||
| 04 | mid-range loudspeaker hifi | PERLGRAU | 2 | 65136911460 | $46.35 | ENDED | Shop at ECS Tuning | |||
| 04 | mid-range loudspeaker hifi | PEACH | 2 | 65138374757 | $46.35 | ENDED | Shop at ECS Tuning | |||
| 04 | mid-range loudspeaker hifi | GRAU | 2 | 65138374748 | $46.35 | Shop at ECS Tuning | ||||
| 04 | mid-range loudspeaker hifi | MARINEBLAU | 2 | 65138374749 | $46.35 | ENDED | Shop at ECS Tuning | |||
| 04 | mid-range loudspeaker hifi | HELLBEIGE | 2 | 65138374750 | $46.35 | Shop at ECS Tuning | ||||
| 04 | mid-range loudspeaker hifi | TANINROT | 2 | 65138374751 | $46.35 | ENDED | Shop at ECS Tuning | |||
| 04 | mid-range loudspeaker hifi | MINT | 2 | 65138374752 | $49.38 | ENDED | Shop at ECS Tuning | |||
| 04 | mid-range loudspeaker hifi | LIGHTGELB | 2 | 65138374753 | $46.35 | Shop at ECS Tuning | ||||
| 04 | mid-range loudspeaker hifi | BROMBEER | 2 | 09/2001 | 65106915136 | $49.38 | ENDED | Shop at ECS Tuning | ||
| 04 | mid-range loudspeaker hifi | NATURBRAUN | 2 | 09/2001 | 65106915137 | $46.35 | ENDED | Shop at ECS Tuning | ||
| 04 | mid-range loudspeaker hifi | TRAUMROT | 2 | 09/2001 | 65106915138 | $49.38 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 04 | mid-range loudspeaker hifi | KIESELGRAU | 2 | 03/2003 | 65106926710 | $46.35 | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 04 | mid-range loudspeaker hifi | MYSTICBLAU | 2 | 03/2003 | 65106926711 | $49.38 | ENDED | Shop at ECS Tuning | ||
| 05 | Loudspeaker threaded ring | 2 | 65138360690 | $1.77 | Shop at ECS Tuning | |||||
| 06 | Cover loudspeaker left | SCHWARZ | 1 | 51418213911 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | SCHWARZ | 1 | 51418213912 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker left | GRAU | 1 | 51418224377 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | GRAU | 1 | 51418224378 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker left | HELLBEIGE | 1 | 51418224387 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | HELLBEIGE | 1 | 51418224388 | $8.51 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
