amplifier / holder hifi system for BMW 3 Series E46 328i (2000)

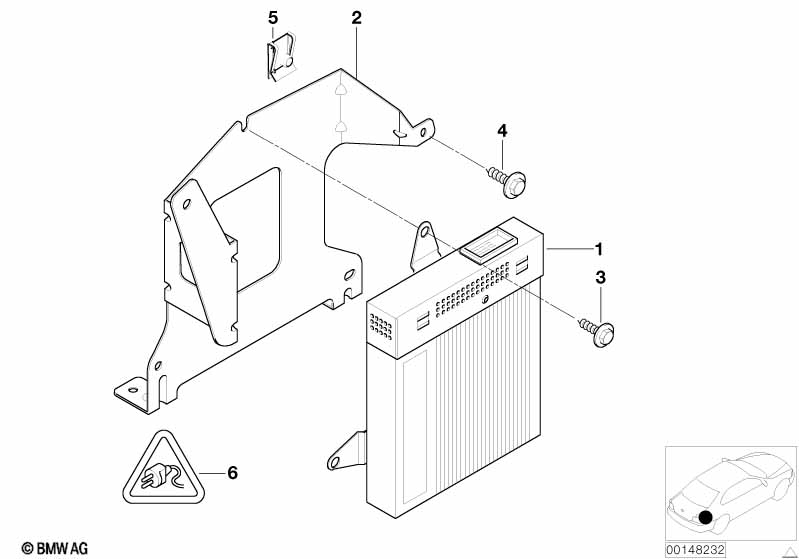

This amplifier / holder hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier hifi system | 1 | 65128368230 | $447.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder Hifi system amplifier | VOLLAUSBAU | 1 | 65128370926 | $11.25 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Universal cover cap, uncoded | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket housing, black | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
| -- | Socket housing, grey | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i amplifier / holder hifi system?
- This technical diagram illustrates the amplifier / holder hifi system within the Audio, Navigation, Electronic Systems group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Amplifier hifi system (Part #65128368230).
- Which models use the hardware listed in this amplifier / holder hifi system?
- The hardware and components featured in the amplifier / holder hifi system are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Amplifier hifi system (65128368230) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the amplifier / holder hifi system assembly?
- Each item in the amplifier / holder hifi system corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Amplifier hifi system by locating its position on the schematic, which then links to the official BMW part number 65128368230 for the Audio, Navigation, Electronic Systems section.
