parts Harman Kardon hifi, front door for BMW 3 Series E46 318d (2003)

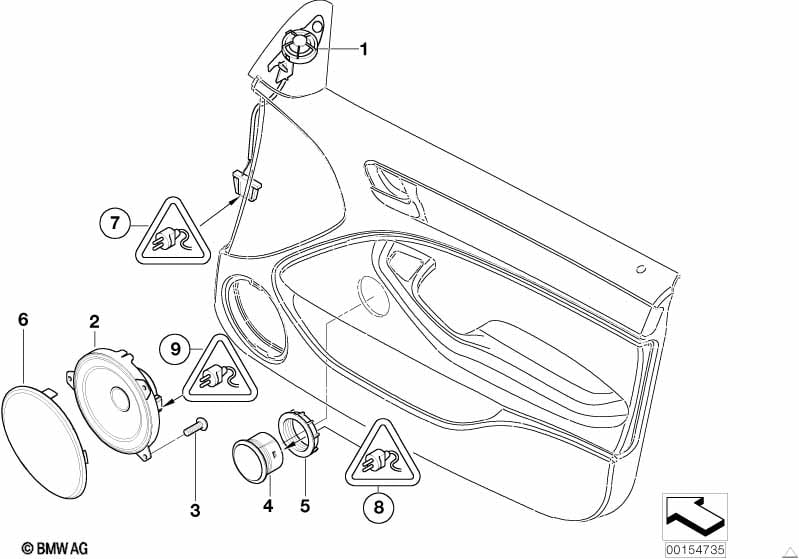

This parts Harman Kardon hifi, front door technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The wiring for the loudspeakers is included in the door wiring harness |
|||||||||
| 01 | Left top-hifi loudspeaker tweeter | 1 | 65138368241 | $79.17 | Shop at ECS Tuning | |||||
| 01 | Right top-hifi loudspeaker tweeter | 1 | 65138368242 | $79.17 | Shop at ECS Tuning | |||||
| 02 | bass loudspeaker hifi system | 50-7.000HZ | 2 | 65138368238 | $46.35 | Shop at ECS Tuning | ||||
| 03 | Saucer-head screw | 6 | 51168107577 | $0.25 | Shop at ECS Tuning | |||||
| 04 | MID-range loudspeaker | SCHWARZ | 2 | 65138368243 | $133.07 | Shop at ECS Tuning | ||||
| 04 | MID-range loudspeaker | PERLGRAU | 2 | 65136911461 | $133.07 | ENDED | Shop at ECS Tuning | |||
| 04 | MID-range loudspeaker | PEACH | 2 | 65138374779 | $133.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | GRAU | 2 | 65138374770 | $133.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | MARINE | 2 | 65138374771 | $122.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | HELLBEIGE | 2 | 65138374772 | $133.07 | Shop at ECS Tuning | ||||
| 04 | Top-hifi MID-range loudspeaker | TANINROT | 2 | 65138374773 | $133.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | MINT | 2 | 65138374774 | $122.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | LIGHTGELB | 2 | 65138374775 | $133.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Top-hifi MID-range loudspeaker | BROMBEER | 2 | 09/2001 | 65106915151 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 04 | Top-hifi MID-range loudspeaker | NATURBRAUN | 2 | 09/2001 | 65106915152 | $133.07 | ENDED | Shop at ECS Tuning | ||
| 04 | Top-hifi MID-range loudspeaker | TRAUMROT | 2 | 09/2001 | 65106915153 | $122.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 04 | Top-hifi MID-range loudspeaker | KIESELGRAU | 2 | 03/2003 | 65106926712 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 04 | Top-hifi MID-range loudspeaker | MYSTICBLAU | 2 | 03/2003 | 65106926713 | ENDED | Shop at ECS Tuning | |||
| 05 | Loudspeaker threaded ring | 2 | 65138360690 | $1.77 | Shop at ECS Tuning | |||||
| 06 | Cover loudspeaker left | SCHWARZ | 2 | 51418213911 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | SCHWARZ | 2 | 51418213912 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker left | GRAU | 2 | 51418224377 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | GRAU | 2 | 51418224378 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker left | HELLBEIGE | 2 | 51418224387 | $8.51 | Shop at ECS Tuning | ||||
| 06 | Cover loudspeaker right | HELLBEIGE | 2 | 51418224388 | $8.51 | Shop at ECS Tuning | ||||
| 07 | Universal socket housing uncoded | 3 POL. | 2 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 61130056960 | Shop at ECS Tuning | |||||
| Socket plug on wiring harness: - 6 931 929 plugs - 1 383 672 pins (0.2-0.5 mm²) - 1 393 723 pins (0.75 mm²) |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
