parts Harman Kardon hifi, parcel shelf for BMW 3 Series E46 318i (2003)

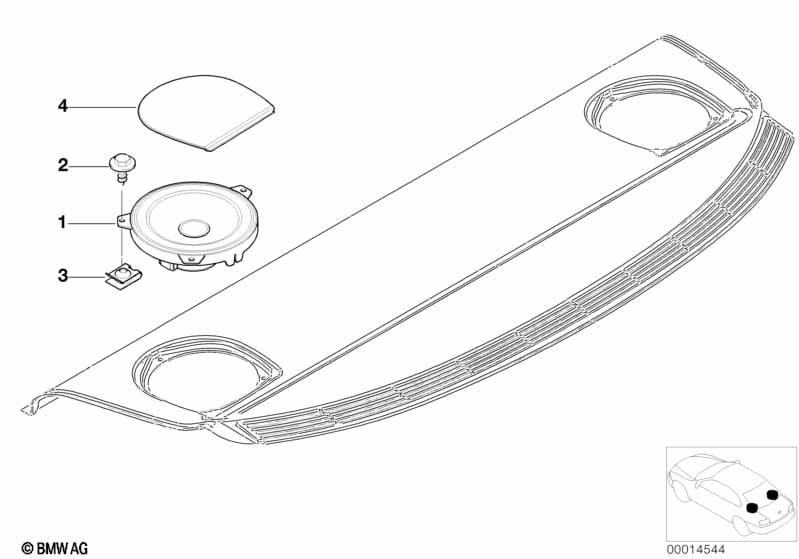

This parts Harman Kardon hifi, parcel shelf technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

parts Harman Kardon hifi, parcel shelf
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 bass loudspeaker hifi system 50-7.000HZ 2 65138368238 $46.35 Shop at ECS Tuning
02 Hex head screw ST4,8X16-ZNS3 6 07119901299 $0.25 Shop at ECS Tuning
03 Body nut ST4,8-9 6 65137067915 $0.22 Shop at ECS Tuning
04 Cover Loudspeaker SCHWARZ 2 51468213972 $24.00 Shop at ECS Tuning
04 Cover Loudspeaker GRAU 2 51468226498 $24.00 Shop at ECS Tuning
04 Cover Loudspeaker MINTGRUEN 2 51468226500 $25.67 ENDED Shop at ECS Tuning
04 Cover Loudspeaker HELLBEIGE 2 51468226501 $24.00 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
