Subwoofer hifi system Harman Kardon for BMW 3 Series E46 316i (2004)

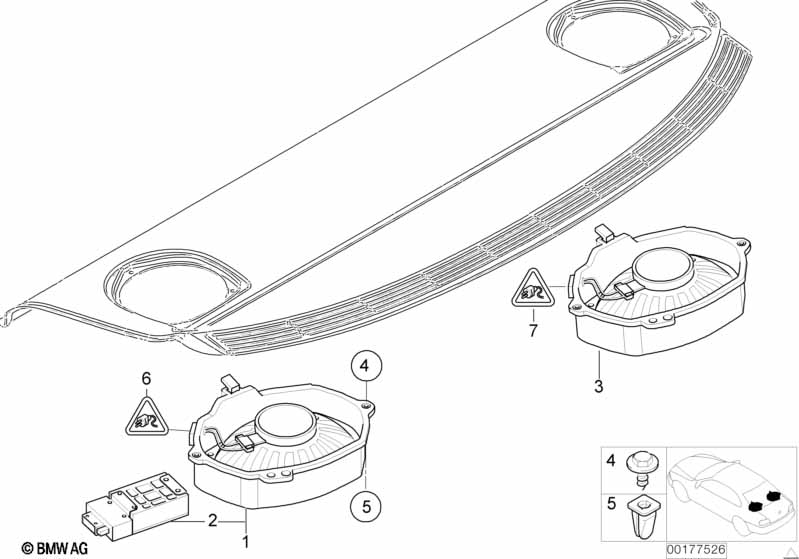

This Subwoofer hifi system Harman Kardon technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | subwoofer left top hifi system | HARMAN KARDON | 1 | 65136920997 | $484.43 | Shop at ECS Tuning | ||||
| 02 | Amplifier subwoofer | HARMAN KARDON | 1 | 65136920999 | $256.98 | ENDED | Shop at ECS Tuning | |||
| 03 | subwoofer right top hifi system | HARMAN KARDON | 1 | 65138369940 | $198.33 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 6 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | ST 4.8 | 6 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Socket housing | 10 POL. SCHWARZ | 1 | 61131383518 | $4.42 | Shop at ECS Tuning | ||||
| 07 | Plug housing | 2 POL. | 1 | 61131378106 | $1.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 | 0,5-1,0MM² | 4 | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
