Single parts f antenna-diversity for BMW 3 Series E46 330Ci (2003)

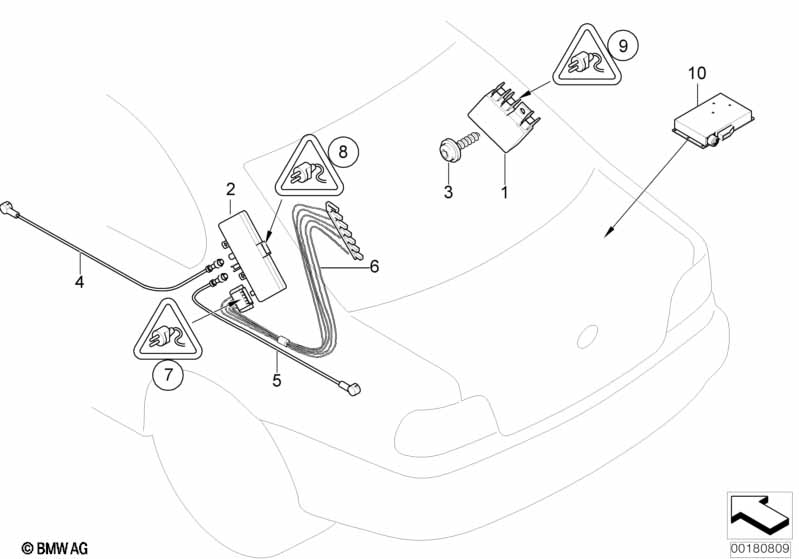

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trap circuit | 1 | 65248380944 | $32.39 | Shop at ECS Tuning | |||||
| 02 | Amplifier | 1 | 03/2001 | 65256906073 | $197.28 | Shop at ECS Tuning | ||||
| only applies to on-board monitor (SA602) radio navigation (SA606) navigation system (SA609) |
||||||||||
| 02 | Amplifier | 1 | 09/2001 | 65256906073 | $197.28 | Shop at ECS Tuning | ||||
| For vehicles with Radio remote control |
=Yes |
|||||||||
| 02 | Amplifier | 433MHZ | 1 | 03/2001 | 65256906074 | $242.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Amplifier | 315MHZ | 1 | 03/2001 | 65256906075 | $242.75 | Shop at ECS Tuning | |||
| For vehicles with Radio remote control only applies to on-board monitor (SA602) radio navigation (SA606) navigation system (SA609) |
=Yes |
|||||||||
| 02 | Amplifier | 433MHZ | 1 | 09/2001 | 65256906074 | $242.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Amplifier | 315MHZ | 1 | 09/2001 | 65256906075 | $242.75 | Shop at ECS Tuning | |||
| 03 | Sheet metal screw | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Antenna cable Diversity NG | 3635MM | 1 | 03/2001 | 61126912488 | $44.33 | Shop at ECS Tuning | |||
| For vehicles with Navigation system, radio |
S606A=Yes |
|||||||||
| 04 | Antenna cable Diversity NG | 3635MM | 1 | 09/2001 | 61126912488 | $44.33 | Shop at ECS Tuning | |||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 04 | Antenna cable Diversity NG | 3635MM | 1 | 09/2001 | 61126912488 | $44.33 | Shop at ECS Tuning | |||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 05 | Antenna cable Diversity NG | 1335MM | 1 | 09/2001 | 61126912489 | $57.58 | Shop at ECS Tuning | |||
| 06 | Wiring set Diversity | 1 | 61128373267 | $12.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Universal socket housing uncoded | 8 POL. | 1 | 61136954526 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 8 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 8 | 61136931880 | Shop at ECS Tuning | |||||
| 08 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 3 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 3 | 61136931880 | Shop at ECS Tuning | |||||
| 09 | Plug housing | 1 POL/ Z- CODE | 1 | 61131378926 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket 2.5 | 0.5-1.0 MM² | 1 | 61131392302 | $0.42 | Shop at ECS Tuning | ||||
