Electric parts airbag for BMW 3 Series E46 320i (2001)

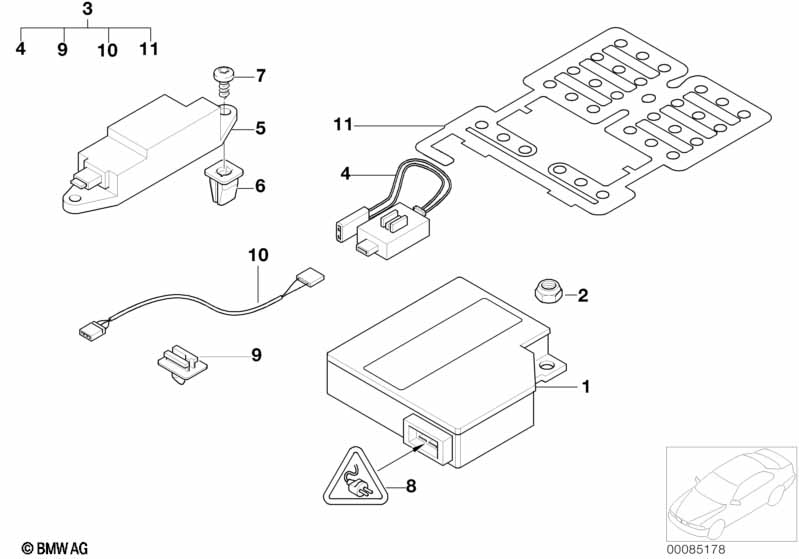

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sensor mats for M3 CSL are contained in MG 52 seat cover |
|||||||||
| 02 | Self-locking hex nut | M6-10 ZN | 3 | 08/2006 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 02 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Control electronics, seat occupancy | 1 | 65776940191 | $73.00 | Shop at ECS Tuning | |||||
| 05 | Impact sensor side air bag | 2 | 03/2000 | 65779119743 | $277.11 | Shop at ECS Tuning | ||||
| 06 | Prestol-cage | ST4,8-2 | 4 | 01/2003 | 07129904323 | $0.27 | Shop at ECS Tuning | |||
| 07 | Fillister head screw | ISA M5X20 | 4 | 07140150280 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Plug housing | 50 POL./GELB | 1 | 61138364596 | $6.90 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering cap | 50POL. Z CODE | 1 | 61138364608 | $10.72 | Shop at ECS Tuning | ||||
| -- | Lock | WEISS | 1 | 61138365936 | $0.37 | Shop at ECS Tuning | ||||
| 09 | Bracket, plug connection gray | 1 | 61138365536 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Wiring set, seat occupancy identificat. | 1 | 52108240500 | $19.41 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sensor mat, co-driver's airbag | SBR | 1 | 65776921952 | $124.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
