Radio BMW navigation for BMW 3 Series E46 330d (2004)

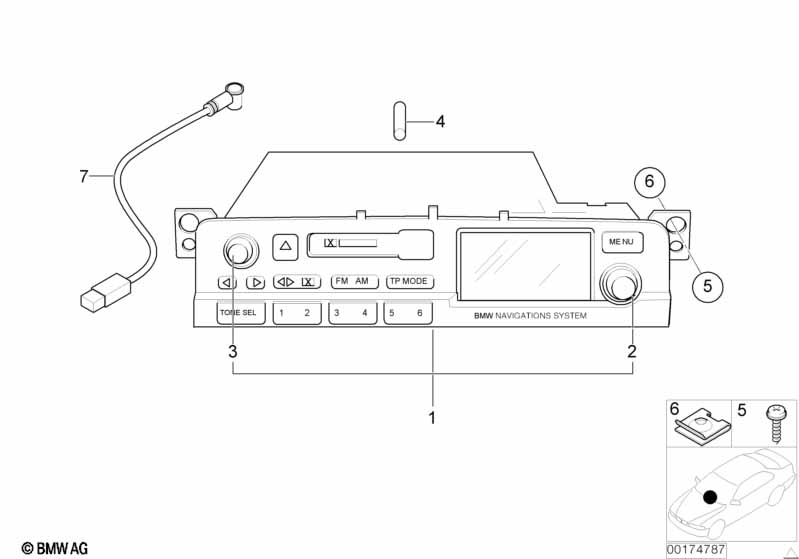

This Radio BMW navigation technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. radio BMW navigation | 1 | 09/2004 | 08/2005 | 65126946658 | ENDED | Shop at ECS Tuning | |||
| 01 | Radio BMW Navigation | 1 | 09/2001 | 08/2006 | 65126976899 | Shop at ECS Tuning | ||||
| 01 | Radio BMW navigation | 1 | 09/2001 | 65125A505D4 | Shop at ECS Tuning | |||||
| 02 | Button | 1 | 65126907822 | $7.84 | Shop at ECS Tuning | |||||
| 03 | Button | 1 | 65126907817 | $7.84 | ENDED | Shop at ECS Tuning | ||||
| 04 | Radio supporting pin | 1 | 65128370535 | $0.94 | Shop at ECS Tuning | |||||
| 05 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,2-3-ZNS3 | 2 | 07129904221 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
